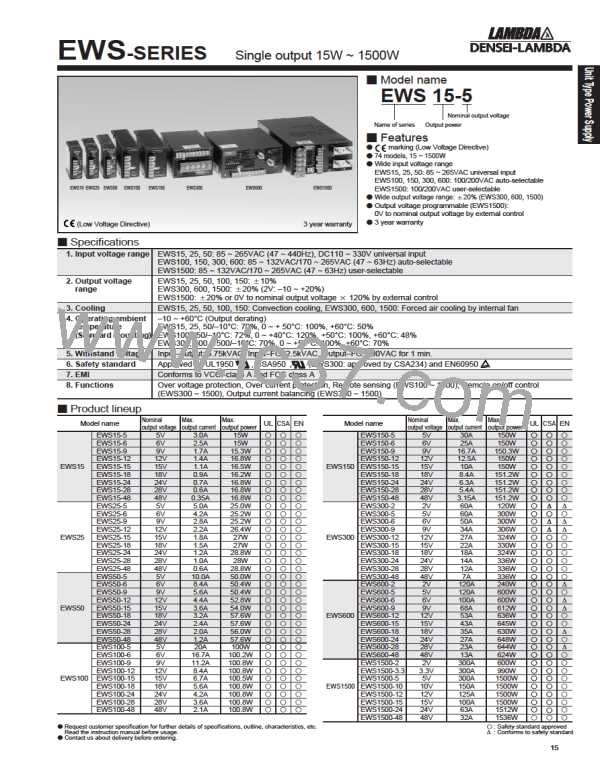

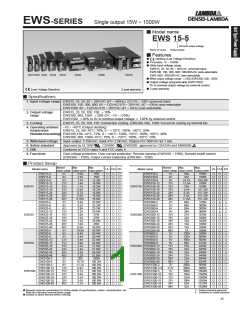

EWS
-SERIES
Single output 15W ~ 1500W
Unit Type Power Supply
Model name
EWS 15-5
Nominal output voltage
Name of series
Output power
Features
marking (Low Voltage Directive)
74 models, 15 ~ 1500W
Wide input voltage range
EWS15, 25, 50: 85 ~ 265VAC universal input
EWS100, 150, 300, 600: 100/200VAC auto-selectable
EWS1500: 100/200VAC user-selectable
Wide output voltage range: 20% (EWS300, 600, 1500)
Output voltage programmable (EWS1500):
0V to nominal output voltage by external control
3 year warranty
EWS15 EWS25 EWS50
EWS100
EWS150
EWS300
EWS600
EWS1500
(Low Voltage Directive)
3 year warranty
Specifications
1. Input voltage range
EWS15, 25, 50: 85 ~ 265VAC (47 ~ 440Hz), DC110 ~ 330V universal input
EWS100, 150, 300, 600: 85 ~ 132VAC/170 ~ 265VAC (47 ~ 63Hz) auto-selectable
EWS1500: 85 ~ 132VAC/170 ~ 265VAC (47 ~ 63Hz) user-selectable
2. Output voltage
EWS15, 25, 50, 100, 150: 10%
range
EWS300, 600, 1500: 20% (2V: –10 ~ +20%)
EWS1500: 20% or 0V to nominal output voltage
120% by external control
3. Cooling
EWS15, 25, 50, 100, 150: Convection cooling, EWS300, 600, 1500: Forced air cooling by internal fan
4. Operating ambient
–10 ~ +60°C (Output derating)
temperature
EWS15, 25, 50/–10°C: 70%, 0 ~ + 50°C: 100%, +60°C: 50%
(Standard mounting)
EWS100,150/–10°C: 72%, 0 ~ +40°C: 120%, +50°C: 100%, +60°C: 48%
EWS300, 600, 1500/–10°C: 70%, 0 ~ +50°C: 100%, +60°C: 70%
5. Withstand voltage
Input–output: 3.75kVAC, Input–FG: 2.5kVAC, Output–FG: 500VAC for 1 min.
6. Safety standard
Approved by UL1950
, CSA950
(EWS300: approved by CSA234) and EN60950
7. EMI
Conforms to VCCI-class A and FCC class A
8. Functions
Over voltage protection, Over current protection, Remote sensing (EWS100 ~ 1500), Remote on/off control
(EWS300 ~ 1500), Output current balancing (EWS300 ~ 1500)
Product lineup
Model name
EWS15-5
EWS15-6
EWS15-9
EWS15-12
EWS15-15
EWS15-18
EWS15-24
EWS15-28
EWS15-48
EWS25-5
EWS25-6
EWS25-9
EWS25-12
EWS25-15
EWS25-18
EWS25-24
EWS25-28
EWS25-48
EWS50-5
EWS50-6
EWS50-9
EWS50-12
EWS50-15
EWS50-18
EWS50-24
EWS50-28
EWS50-48
EWS100-5
EWS100-6
EWS100-9
EWS100-12
EWS100-15
EWS100-18
EWS100-24
EWS100-28
EWS100-48
Nominal
Max.
Max.
output voltage output current output power
15W
5V
3.0A
15W
6V
2.5A
15.3W
9V
1.7A
16.8W
12V
1.4A
16.5W
15V
1.1A
16.2W
18V
0.9A
16.8W
24V
0.7A
16.8W
28V
0.6A
16.8W
48V
0.35A
25.0W
5V
5.0A
25.2W
6V
4.2A
25.2W
9V
2.8A
26.4W
12V
2.2A
27W
15V
1.8A
27W
18V
1.5A
28.8W
24V
1.2A
28W
28V
1.0A
28.8W
48V
0.6A
50.0W
5V
10.0A
50.4W
6V
8.4A
50.4W
9V
5.6A
52.8W
12V
4.4A
54.0W
15V
3.6A
57.6W
18V
3.2A
57.6W
24V
2.4A
56.0W
28V
2.0A
57.6W
48V
1.2A
100W
5V
20A
100.2W
6V
16.7A
100.8W
9V
11.2A
100.8W
12V
8.4A
100.5W
15V
6.7A
100.8W
18V
5.6A
100.8W
24V
4.2A
28V
100.8W
3.6A
48V
100.8W
2.1A
UL CSA EN
Model name
EWS150-5
EWS150-6
EWS150-9
EWS150-12
EWS150-15
EWS150-18
EWS150-24
EWS150-28
EWS150-48
EWS300-2
EWS300-5
EWS300-6
EWS300-9
EWS300-12
EWS300-15
EWS300-18
EWS300-24
EWS300-28
EWS300-48
EWS600-2
EWS600-5
EWS600-6
EWS600-9
EWS600-12
EWS600-15
EWS600-18
EWS600-24
EWS600-28
EWS600-48
EWS1500-2
EWS1500-3.3
EWS1500-5
EWS1500-10
EWS1500-12
EWS1500-15
EWS1500-24
EWS1500-48
Nominal
Max.
Max.
output voltage output current output power
5V
150W
30A
6V
150W
25A
9V
150.3W
16.7A
12V
150W
12.5A
15V
150W
10A
18V
151.2W
8.4A
24V
151.2W
6.3A
28V
151.2W
5.4A
48V
151.2W
3.15A
2V
120W
60A
5V
300W
60A
6V
300W
50A
9V
306W
34A
12V
324W
27A
15V
330W
22A
18V
324W
18A
24V
336W
14A
28V
336W
12A
48V
336W
7A
2V
240W
120A
5V
600W
120A
6V
600W
100A
9V
612W
68A
12V
636W
53A
15V
645W
43A
18V
630W
35A
24V
648W
27A
28V
644W
23A
48V
624W
13A
2V
600W
300A
3.3V
990W
300A
5V
1500W
300A
10V
1500W
150A
12V
1500W
125A
15V
1500W
100A
24V
1512W
63A
48V
1536W
32A
UL CSA EN

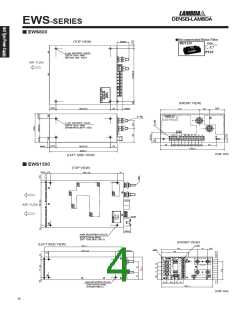

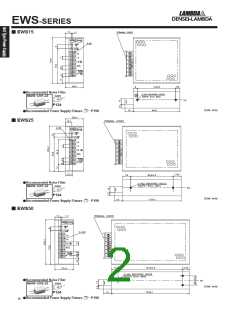

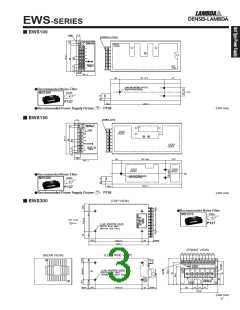

EWS15
EWS150
EWS25
EWS300
EWS50
EWS600
EWS100
EWS1500
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
: Safety standard approved
: Conforms to safety standard
