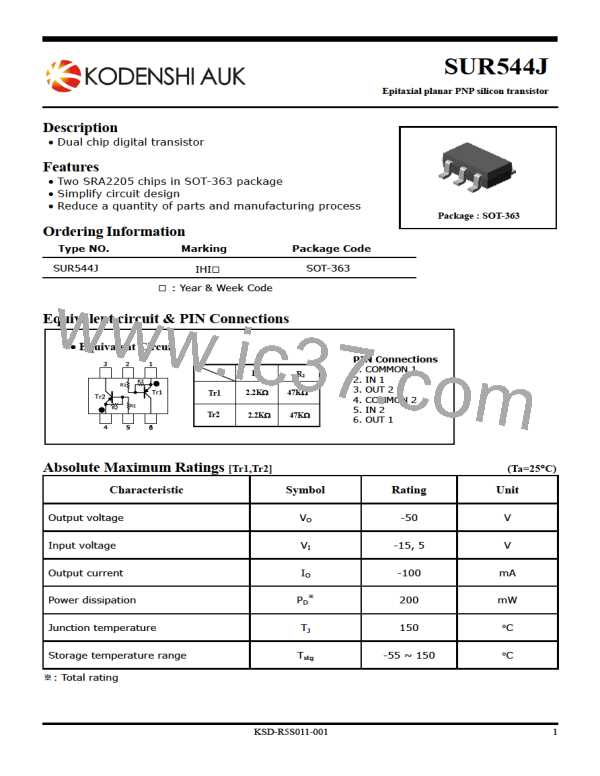

SUR544J
Epitaxial planar PNP silicon transistor
Description
•
Dual chip digital transistor
Features
•
Two SRA2205 chips in SOT-363 package
•
Simplify circuit design
•
Reduce a quantity of parts and manufacturing process
Package : SOT-363
Ordering Information
Type NO.
SUR544J
Marking
IHI
□
Package Code
SOT-363
□
: Year & Week Code
Equivalent circuit & PIN Connections
•
Equivalent Circuit
3
2
R2
1
R
1
R1
R
2
47KΩ
47KΩ
Tr2
R2
R1
Tr1
Tr1
Tr2
2.2KΩ
2.2KΩ
PIN Connections
1. COMMON 1
2. IN 1
3. OUT 2
4. COMMON 2
5. IN 2
6. OUT 1
Absolute Maximum Ratings
[Tr1,Tr2]
Characteristic
Output voltage
Input voltage
Output current
Power dissipation
Junction temperature
Storage temperature range
※:
Total rating
(Ta=25°C)
Symbol
V
O
V
I
I
O
P
D
※
T
J
T
stg
Rating
-50
-15, 5
-100
200
150
-55 ~ 150
Unit
V
V
mA
mW
°C
°C
KSD-R5S011-001
1
KODENSHI [ KODENSHI KOREA CORP. ]
