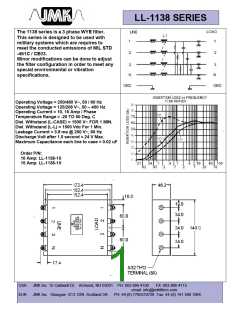

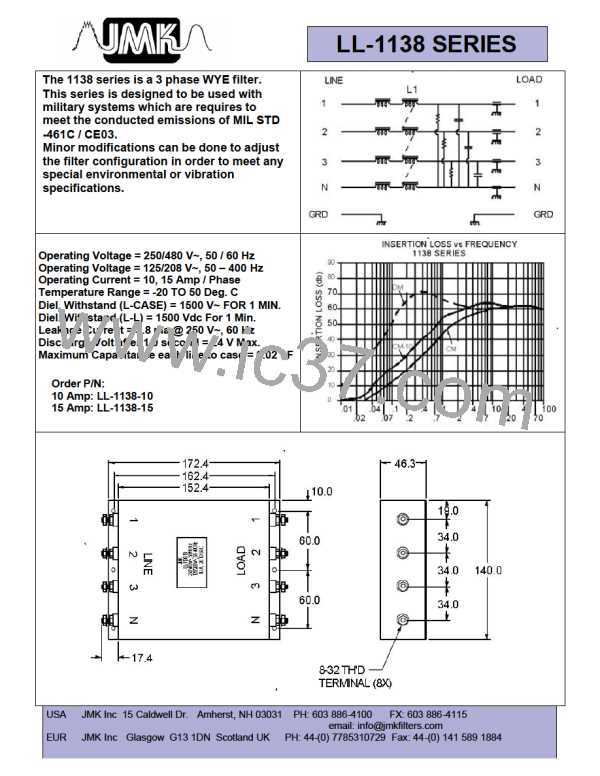

LL-1138 SERIES
The 1138 series is a 3 phase WYE filter.
This series is designed to be used with
military systems which are requires to
meet the conducted emissions of MIL STD
-461C / CE03.
Minor modifications can be done to adjust
the filter configuration in order to meet any
special environmental or vibration
specifications.
Operating Voltage = 250/480 V~, 50 / 60 Hz
Operating Voltage = 125/208 V~, 50 – 400 Hz
Operating Current = 10, 15 Amp / Phase
Temperature Range = -20 TO 50 Deg. C
Diel. Withstand (L-CASE) = 1500 V~ FOR 1 MIN.
Diel. Withstand (L-L) = 1500 Vdc For 1 Min.
Leakage Current = 3.8 ma @ 250 V~, 60 Hz
Discharge Volt after 1.0 second = 24 V Max.
Maximum Capacitance each line to case = 0.02 uF
Order P/N:
10 Amp: LL-1138-10
15 Amp: LL-1138-15
