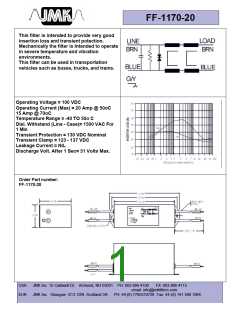

FF-1170-20
This filter is intended to provide very good
insertion loss and transient potection.
Mechanically the filter is Intended to operate
in severe temperature and vibration
environments.
This filter can be used in transportation
vehicles such as buses, trucks, and trains.
Operating Voltage = 100 VDC
Operating Current (Max) = 20 Amp @ 50oC
15 Amp @ 70oC
Temperature Range = -40 TO 50o C
Diel. Withstand (Line - Case)= 1500 VAC For
1 Min
Transient Protection = 130 VDC Nominal
Transient Clamp = 123 - 137 VDC
Leakage Current = NIL
Discharge Volt. After 1 Sec= 31 Volts Max.
Order Part number:
FF-1170-20
USA
EUR
JMK Inc 15 Caldwell Dr. Amherst, NH 03031
JMK Inc Glasgow G13 1DN Scotland UK
PH: 603 886-4100
FX: 603 886-4115
email: info@jmkfilters.com
PH: 44-(0) 7785310729 Fax: 44-(0) 141 589 1884
