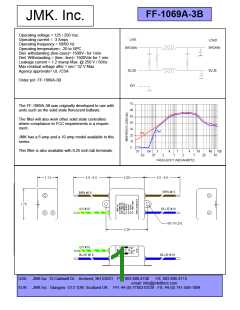

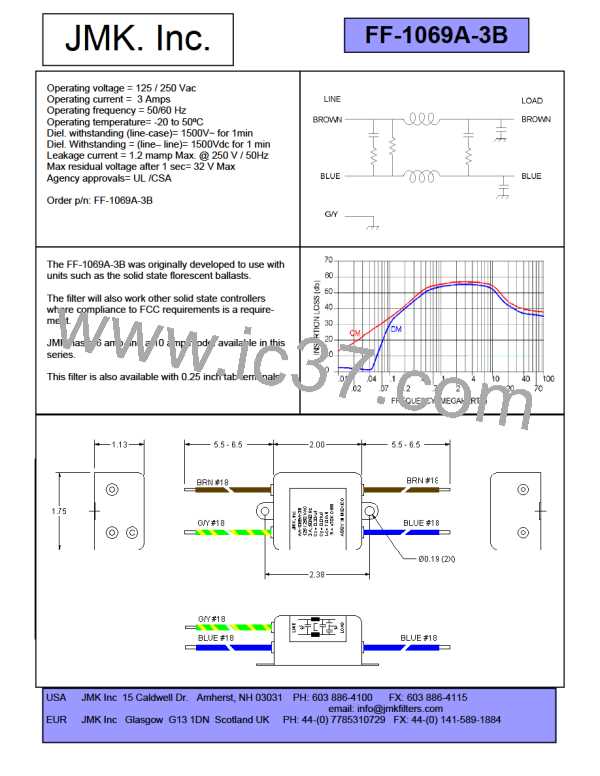

JMK. Inc.
Operating voltage = 125 / 250 Vac
Operating current = 3 Amps
Operating frequency = 50/60 Hz
Operating temperature= -20 to 50ºC
Diel. withstanding (line-case)= 1500V~ for 1min
Diel. Withstanding = (line– line)= 1500Vdc for 1 min
Leakage current = 1.2 mamp Max. @ 250 V / 50Hz
Max residual voltage after 1 sec= 32 V Max
Agency approvals= UL /CSA
Order p/n: FF-1069A-3B
FF-1069A-3B
The FF-1069A-3B was originally developed to use with
units such as the solid state florescent ballasts.
The filter will also work other solid state controllers
where compliance to FCC requirements is a require-
ment.
JMK has a 6 amp and a 10 amp model available in this
series.
This filter is also available with 0.25 inch tab terminals.
USA
EUR
JMK Inc 15 Caldwell Dr. Amherst, NH 03031
JMK Inc Glasgow G13 1DN Scotland UK
PH: 603 886-4100
FX: 603 886-4115
email: info@jmkfilters.com
PH: 44-(0) 7785310729 FX: 44-(0) 141-589-1884
JMK [ JMK INC. ]
