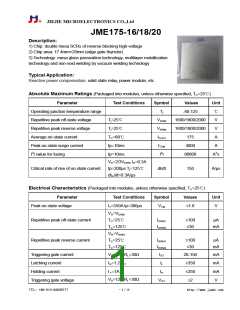

Non triggering gate voltage
VD=VDRM Tj=125℃
VGD
≥0.25
V
VD=2/3VDRM Tj=125℃
Critical rate of rise of voltage
dV/dt
≥1000
V/μs
Gate Open

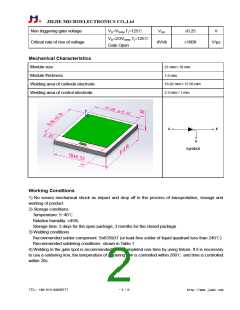

Mechanical Characteristics
Module size
21 mm×18 mm
1.6 mm
Module thickness
16.62 mm×15.56 mm
2.3 mm×1 mm
Welding area of cathode electrode
Welding area of control electrode
A
K
G
symbol
Working Conditions
1) No severe mechanical shock as impact and drop off in the process of transportation, storage and
working of product.
2) Storage conditions
Temperature: 5~40℃
Relative humidity: ≤45%
Storage time: 3 days for the open package; 3 months for the closed package
3) Welding conditions
Recommended solder component: Sn63Sb37 (or lead-free solder of liquid quadrant less than 240℃)

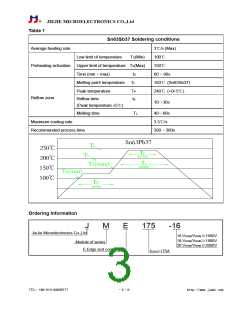

Recommended soldering conditions: shown in Table 1
4) Welding in the gate spot is recommended to be completed one-time by using fixture. If it is necessary
to use a soldering iron, the temperature of soldering iron is controlled within 280℃ and time is controlled
within 20s.
