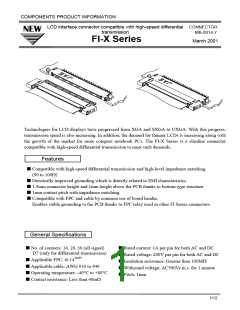

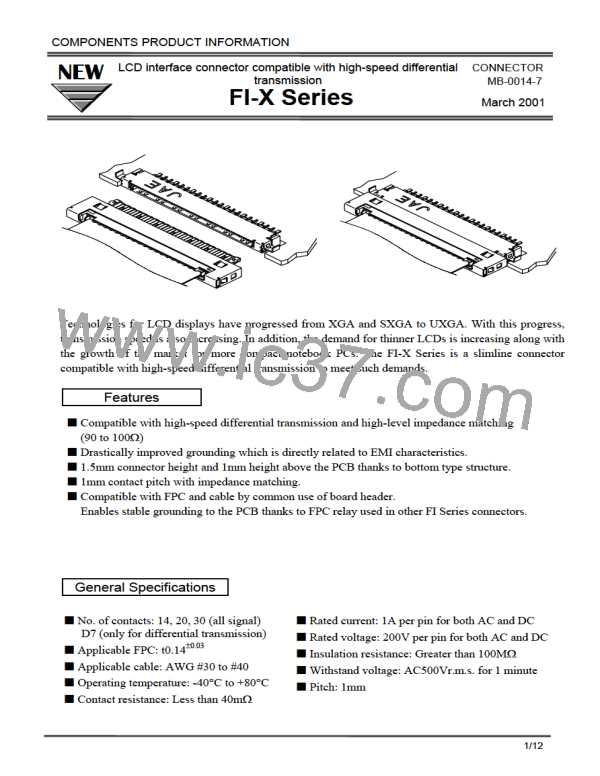

MB-0014-7

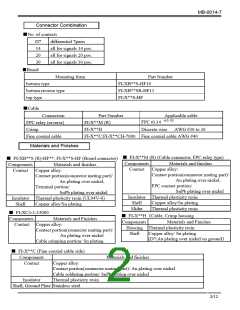

Connector Combination
■No. of contacts
D7 differential 7pairs
14
20
30
all for signals 14 pos.
all for signals 20 pos.
all for signals 30 pos.
■Board
Mounting form
Part Number

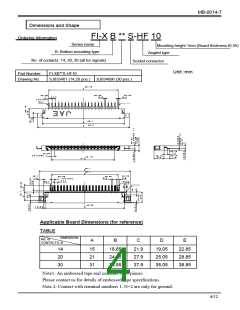

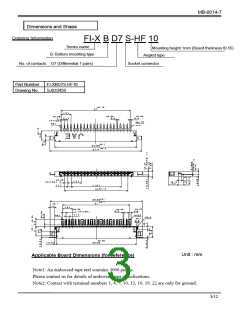

FI-XB**S-HF10
bottom type
bottom reverse type
top type

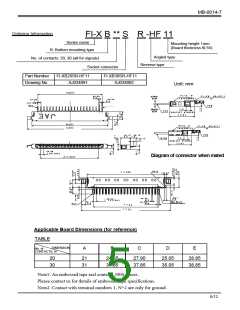

FI-XB**SR-HF11

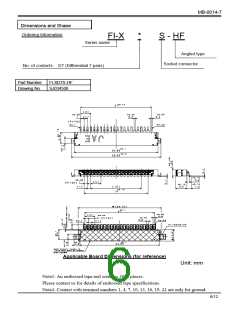

FI-X**S-HF
■Cable
Connection
FPC relay (reverse)
Crimp
Part Number

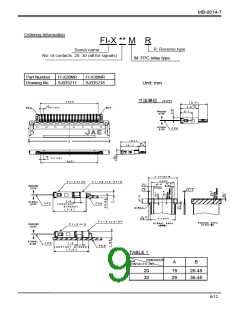

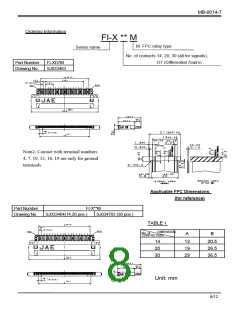

FI-X**M (R)
FI-X**H
FI-X**C/FI-X**CH-7000 Fine coaxial cable AWG #40
Applicable cable
±0.03
FPC t0.14
Discrete wire
AWG #30 to 36
Fine coaxial cable
Materials and Finishes
■ FI-X**M (R) (Cable connector, FPC relay type)
■ FI-XB**S (R)-HF**, FI-X**S-HF (Board connector)
Components
Materials and finishes
Components
Materials and finishes
Contact
Copper alloy:
Contact
Copper alloy:
Contact portion(connector mating part)/
Au plating over nickel,
Contact portion(connector mating part)/
Au plating over nickel,
FPC contact portion/
Terminal portion/
SnPb plating over nickel
SnPb plating over nickel
Insulator Thermal plasticity resin
Shell
Slider
Insulator Thermal plasticity resin (UL94V-0)
Shell
Copper alloy/Sn plating
Thermal plasticity resin
Copper alloy/Sn plating
■ FI-XC3-1-15000
■ FI-X**H（Cable, Crimp housing
Components
Materials and Finishes
Components
Materials and Finishes
Contact Copper alloy:
Housing Thermal plasticity resin
Contact portion(connector mating part)/
Shell
Copper alloy/ Sn plating
(D7:Au plating over nickel on ground）
Au plating over nickel
Cable crimping portion/ Sn plating
■ FI-X**C (Fine coaxial cable side)
Components
Materials and finishes
Contact
Copper alloy:
Contact portion(connector mating part)/ Au plating over nickel
Cable soldering portion/ SnPb plating over nickel
Thermal plasticity resin
Insulator
Shell, Ground Plate Stainless steel
2/12
