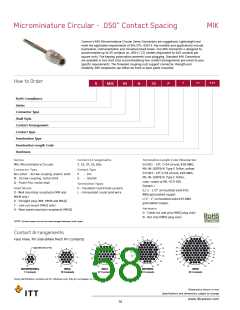

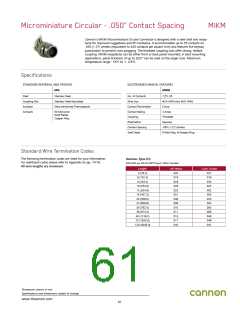

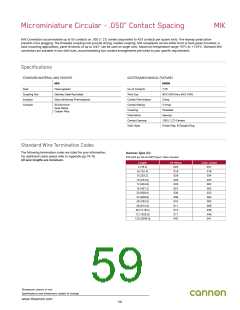

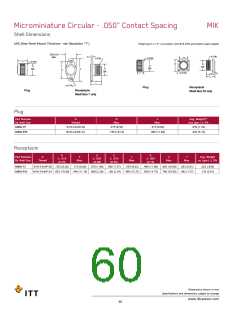

Microminiature Circular - .050” Contact Spacing
MIK
Cannon’s MIK Microminiature Circular Series Connectors are ruggedized, lightweight and
meet the applicable requirements of MIL-DTL- 83513. Key markets and applications include
biomedical, instrumentation and miniature black boxes. Our MIK Connector is designed to
accommodate up to 55 contacts on .050 (1.27) centers (equivalent to 420 contacts per
square inch). Five keyway polarization prevents cross plugging. Standard MIK Connectors
are available in two shell sizes accommodating two contact arrangements pre-wired to your
specific requirements. The threaded coupling nuts support connector strength and
reliability. MIK receptacles can either be front or back panel mounted.
How to Order
R
MIK
M
6-
55
P
*
**
***
RoHS Compliance
Series
Connector Type
Shell Style
Contact Arrangement
Contact Type
Termination Type
Termination Length Code
Hardware
Series
Contact Arrangements
7, 19, 37, 55, 85s
Termination Length Code (Standards)
(H) 001 - 18”, 7/34 strand, #26 AWG,
MIL-W-16878/4, Type E Teflon, yellow.
(H) 003 - 18”,7/34 strand, #26 AWG,
MIL-W-16878/4, Type E Teflon,
color coded to MIL-STD-681
System I.
(L) 1 - 1/2” uninsulated solid #25
AWG gold plated copper.
L) 2 - 1” uninsulated solid #25 AWG
gold plated copper.
MIK: Microminiature Circular
Connector Type
Contact Type
No Letter - Screw couping, plastic shell
M - Screw coupling, metal shell
Q - Push/Pull, metal shell
P
S
- Pin
- Socket
Termination Types
H - Insulated round hook-up wire
L - Uninsulated round solid wire
Shell Styles
0 - Wall mounting receptacle (MIK and
MIKM only)
6 - Straight plug (MIK, MIKM and MIKQ)
7 - Jam nut mount (MIKQ only)
9 - Rear panel mounted receptacle (MIKQ)
Hardware
G - Cable nut and grip (MIKQ plug only)
N - Nut only (MIKQ plug only)
NOTE: Contact types cannot be interchanged between shell styles.
Contact Arrangements
Face View, Pin Side-(Male Twist Pin Contacts)
1
4
5
11
19
28
13
12
4
9
14
20
10
16
5
9
29
39
48
MASTER KEY (TYP)
17
25
32
24
31
39
38
1
3
10
16
23
15
22
28
47
57
7
2
4
7
1
8
12
66
58
36
74
81
40
46
67
13
16
29
33
47
52
75
45
34
37
17
19
82
85
53
55
MIK/MIKM/MIKQ
7 Contacts
MIKQ
19 Contacts
MIKQ
37 Contacts
MIK/MIKM
55 Contacts
MIKM
85 Contacts
Cavity identification numbers are for reference only, they do not appear on connectors.
Dimensions shown in mm
Specifications and dimensions subject to change
