ARINC 600

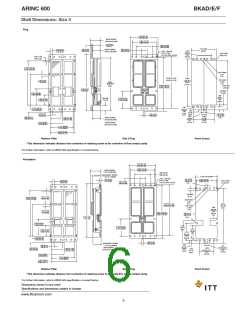

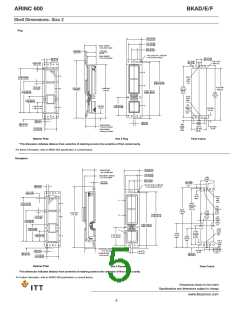

BKAD/E/F
Contact Arrangements - Shell Sizes 2 and 3
BKAF - Available Receptacle Shell ONLY
(Front Release)
SHELL CAVITY
A, B, D, E,
71W1
70 #22
71W1B
70 #22
10T10**
10 #8
121F**
110 #22
6 #20
5 #16
150
150 #22
ENGAGING END SURFACE WHITE ON RED TO INDICATE FRONT RELEASE FRONT REMOVAL CONTACTS FOR INSERTS CONTAINING STANDARD SIGNAL & POWER CONTACTS
BKAF - Available Receptacle Shell ONLY
(Front Release)
SHELL CAVITY C, F
6T6**
6 #8 TRIAX
13W2
4 #20
100
100 #22
3 #16
4 #12
2 #5 COAX
** Pending ARINC release.
NOTE #22 CONTACTS ARE SOCKETS, 20HD,16, 12 ARE PIN CONTACTS.
ENGAGING END SURFACE WHITE ON RED TO INDICATE FRONT RELEASE, FRONT REMOVAL CONTACTS FOR INSERTS CONTAINING STANDARD SIGNAL & POWER CONTACTS
(For Contacts Cavity Location and Contact Cavity Identification refer to ARINC 600 or Consult Factory)
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
