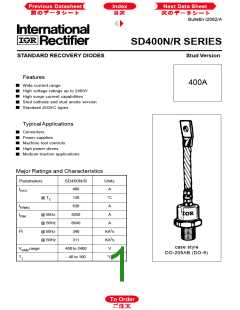

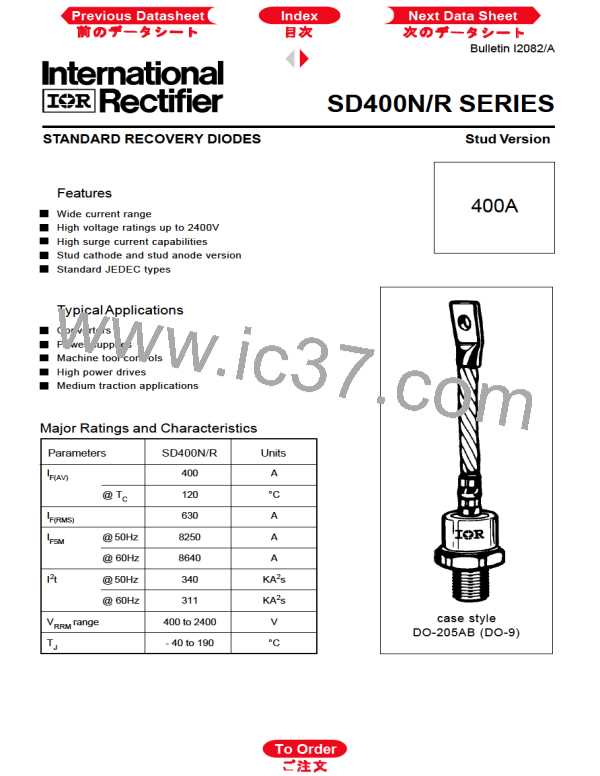

Bulletin I2082/A
SD400N/R SERIES
STANDARD RECOVERY DIODES
Stud Version
Features
Wide current range
High voltage ratings up to 2400V
High surge current capabilities
Stud cathode and stud anode version
Standard JEDEC types
400A
Typical Applications
Converters
Power supplies
Machine tool controls
High power drives
Medium traction applications
Major Ratings and Characteristics
Parameters
I
F(AV)
@ T
C
I
F(RMS)
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
V
RRM
range
T
J
SD400N/R
400
120
630
8250
8640
340
311
400 to 2400
- 40 to 190
Units
A
°C
A
A
A
KA
2
s
KA
2
s
V
°C

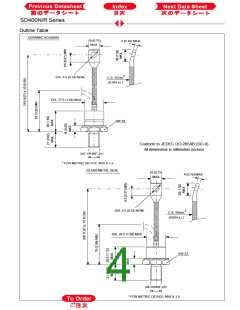

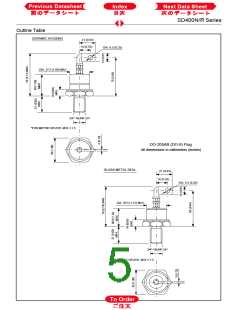

case style
DO-205AB (DO-9)
