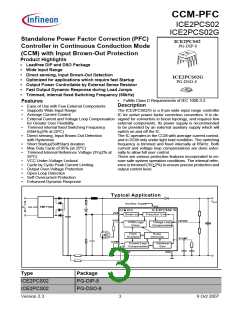

CCM-PFC
ICE2PCS02
ICE2PCS02G
Standalone Power Factor Correction (PFC)
Controller in Continuous Conduction Mode
ICE2PCS02
PG-DIP-8
(CCM) with Input Brown-Out Protection
Product Highlights
•
•
•
•
•
•
•
Leadfree DIP and DSO Package
Wide Input Range
Direct sensing, Input Brown-Out Detection
Optimized for applications which require fast Startup
Output Power Controllable by External Sense Resistor
Fast Output Dynamic Response during Load Jumps
Trimmed, internal fixed Switching Frequency (65kHz)
ICE2PCS02G
test
PG-DSO-8
•
Fulfills Class D Requirements of IEC 1000-3-2
Features
Description
•
•
•
•
Ease of Use with Few External Components
Supports Wide Input Range
The ICE2PCS02/G is a 8-pin wide input range controller
IC for active power factor correction converters. It is de-
Average Current Control
External Current and Voltage Loop Compensation signed for converters in boost topology, and requires few
for Greater User Flexibility
external components. Its power supply is recommended
to be provided by an external auxiliary supply which will
switch on and off the IC.
•
•
Trimmed internal fixed Switching Frequency
(65kHz+5% at 25oC)
Direct sensing, Input Brown-Out Detection
with Hysteresis

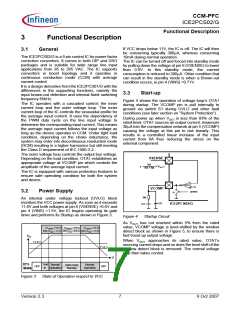

The IC operates in the CCM with average current control,
and in DCM only under light load condition. The switching
frequency is trimmed and fixed internally at 65kHz. Both
current and voltage loop compensations are done exter-
nally to allow full user control.
•
•
•
Short Startup(SoftStart) duration
Max Duty Cycle of 95% (at 25oC)
Trimmed Internal Reference Voltage (3V+2% at
25oC)

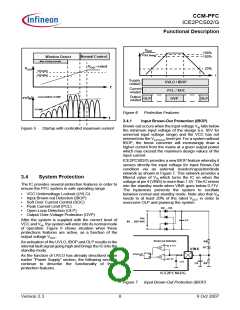

There are various protection features incorporated to en-
sure safe system operation conditions. The internal refer-
ence is trimmed (3V+2%) to ensure precise protection and
output control level.
•
•
•
•
•
•
VCC Under-Voltage Lockout
Cycle by Cycle Peak Current Limiting
Output Over-Voltage Protection
Open Loop Detection

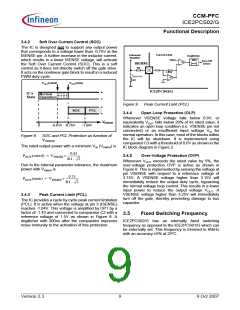

Soft Overcurrent Protection
Enhanced Dynamic Response

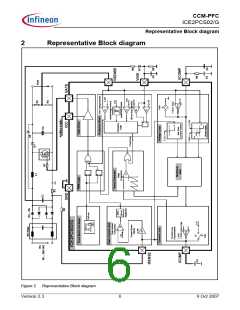

Typical Application
VOUT
Auxiliary Supply
VCC
EMI-Filter
85 ... 265 VAC
CCM PFC
ICE2PCS02 /G
Protection Unit
VINS
Brown-out
GATE
VSENSE
VCOMP
PWM Logic
Driver
Voltage Loop
Compensation
Fixed
Ramp
Oscillator
Generator
ICOMP
Current Loop
Nonlinear
Gain
Compensation
ISENSE
GND

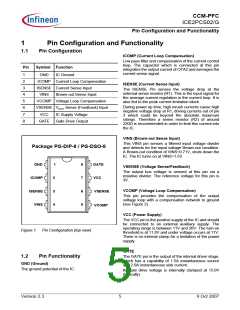

Type
Package
PG-DIP-8
PG-DSO-8
ICE2PCS02
ICE2PCS02
Version 2.3
3
9 Oct 2007
