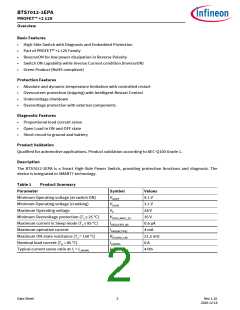

BTS7012-2EPA
PROFET™ +2 12V
Pin Configuration
3.2
Pin Definitions and Functions
Table 2
Pin
Pin Definition
Symbol
Function
EP
VS
Supply Voltage
(exposed pad)
Battery voltage
1
GND
Ground
Signal ground
2, 6
INn
Input Channel n
Digital signal to switch ON channel n (“high” active)
If not used: connect with a 10 kΩ resistor either to GND pin or to module
ground
3
DEN
Diagnostic Enable
Digital signal to enable device diagnosis (“high” active) and to clear the
protection counter of channel selected with DSEL pin
If not used: connect with a 10 kΩ resistor either to GND pin or to module
ground
4
5
IS
SENSE current output
Analog/digital signal for diagnosis
If not used: left open
DSEL
Diagnosis Selection
Digital signal to select one channel to perform ON and OFF state diagnosis
(“high” active)
If not used: connect with a 10 kΩ resistor either to GND pin or to module
ground
7, 11
n.c.
Not connected, internally not bonded
8-10, 12- OUTn
14
Output n
Protected high-side power output channel n1)
1) All output pins of the channel must be connected together on the PCB. All pins of the output are internally connected
together. PCB traces have to be designed to withstand the maximum current which can flow.
