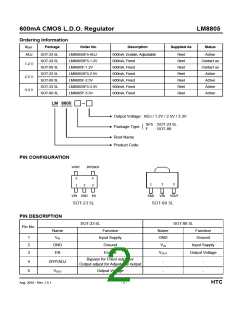

600mA CMOS L.D.O. Regulator
LM8805
Ordering Information
VOUT
Package
Order No.
Description
Supplied As
Status
ADJ
SOT-23 5L
SOT-23 5L
SOT-89 3L
SOT-23 5L
SOT-89 3L
SOT-23 5L
SOT-89 3L
LM8805SF5-ADJ
LM8805SF5-1.2V
LM8805F-1.2V
600mA, Enable, Adjustable
600mA, Fixed
Reel
Reel
Reel
Reel
Reel
Reel
Reel
Active
Contact us
Contact us
Active
1.2 V
2.5 V
3.3 V
600mA, Fixed
LM8805SF5-2.5V
LM8805F-2.5V
600mA, Fixed
600mA, Fixed
Active
LM8805SF5-3.3V
LM8805F-3.3V
600mA, Fixed
Active
600mA, Fixed
Active
LM 8805
Output Voltage : ADJ / 1.2V / 2.5V / 3.3V
SF5 : SOT-23 5L
Package Type
F
: SOT-89
Root Name
Product Code
PIN CONFIGURATION
VOUT
BYP/ADJ
5
1
4
3
1
2
3
2
VIN GND EN
GND
VIN
VOUT
SOT-23 5L
SOT-89 3L
PIN DESCRIPTION
SOT-23 5L
SOT-89 3L
Pin No.
Name
Function
Name
GND
VIN
Function
Ground
1
2
3
VIN
GND
EN
Input Supply
Ground
Input Supply
Enable
VOUT
Output Voltage
Bypass for Fixed output or
Output adjust for Adjustable output
4
5
BYP/ADJ
VOUT
-
-
-
-
Output Voltage
Aug. 2010 - Rev. 1.5.1
- 2 -
HTC
HTC [ HTC KOREA TAEJIN TECHNOLOGY CO. ]
