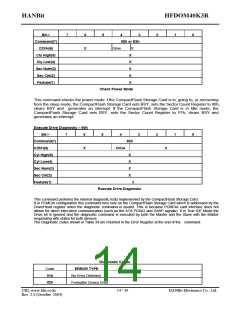

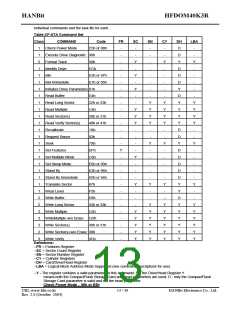

Sector Buffer Error
ECC Circuitry Error
Controlling Microprocessor Error
Slave Error in True IDE Mode

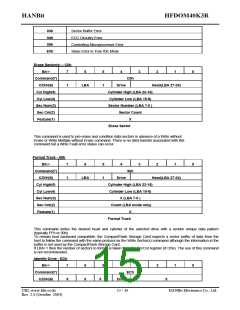

Erase Sector(s) – C0h
Bit->
7
6
5
1
4
3
2
1
0
Command(7)
C/D/H(6)
C0h
1
LBA
Drive
Head(LBA 27-24)
Cyl High(5)
Cyl Low(4)
Sec Num(3)
Sec Cnt(2)
Feature(1)
Cylinder High (LBA 23-16)
Cylinder Low (LBA 15-8)
Sector Number (LBA 7-0 )
Sector Count
X
Erase Sector
This command is used to pre-erase and condition data sectors in advance of a Write without
Erase or Write Multiple without Erase command. There is no data transfer associated with this
command but a Write Fault error status can occur.
Format Track - 50h
Bit->
7
1
6
5
1
4
3
2
1
0
Command(7)
C/D/H(6)
50h
LBA
Drive
Head(LBA 27-24)
Cyl High(5)
Cyl Low(4)
Sec Num(3)
Sec Cnt(2)
Feature(1)
Cylinder High (LBA 23-16)
Cylinder Low (LBA 15-8)
X (LBA 7-0 )
Count (LBA mode only)
X
Format Track
This command writes the desired head and cylinder of the selected drive with a vendor unique data pattern
(typically FFh or 00h).
To remain host backward compatible, the CompactFlash Storage Card expects a sector buffer of data from the
host to follow the command with the same protocol as the Write Sector(s) command although the information in the
buffer is not used by the CompactFlash Storage Card.
If LBA=1 then the number of sectors to format is taken from the SecCnt register (0=256). The use of this command
is not recommended.

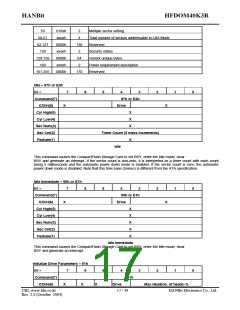

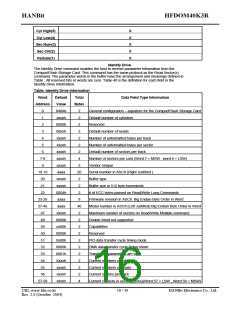

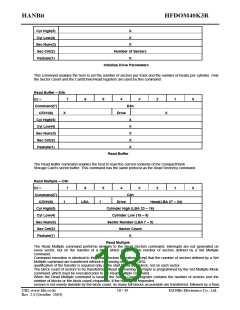

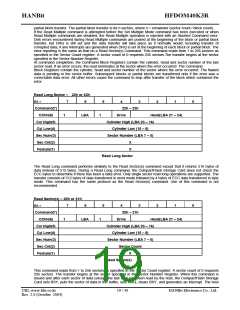

Identify Drive - ECh
Bit->
7
6
5
4
3
2
1
0
Command(7)
C/D/H(6)
ECh
X
X
X
Drive
X
