 浏览型号SRGPP3J的Datasheet PDF文件第2页

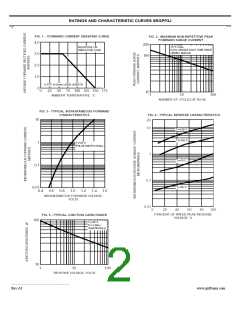

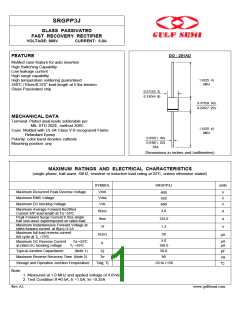

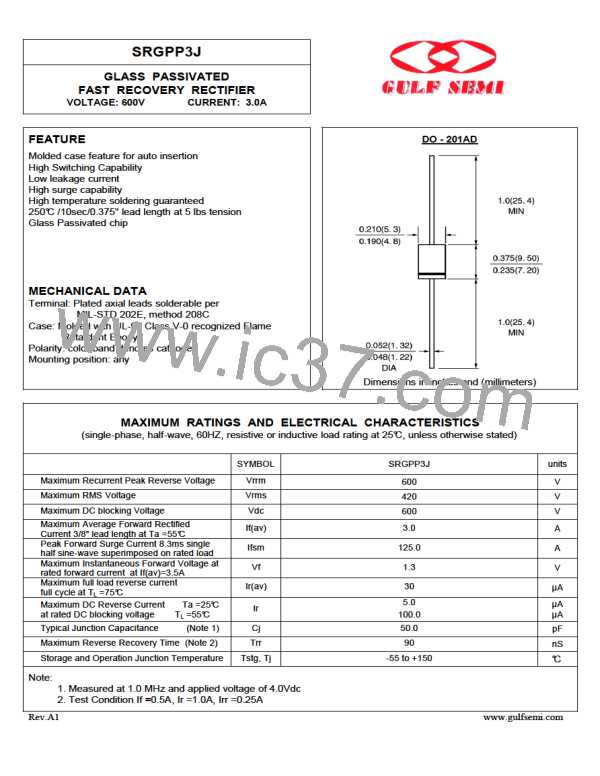

SRGPP3J
GLASS PASSIVATED
FAST RECOVERY RECTIFIER
VOLTAGE: 600V
CURRENT: 3.0A
FEATURE
Molded case feature for auto insertion
High Switching Capability
Low leakage current
High surge capability
High temperature soldering guaranteed
250° /10sec/0.375" lead length at 5 lbs tension
C
Glass Passivated chip
DO - 201AD
MECHANICAL DATA
Terminal: Plated axial leads solderable per
MIL-STD 202E, method 208C
Case: Molded with UL-94 Class V-0 recognized Flame
Retardant Epoxy
Polarity: color band denotes cathode
Mounting position: any
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25° unless otherwise stated)
C,
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
Current 3/8" lead length at Ta =55°
C
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage at
rated forward current at If(av)=3.5A
Maximum full load reverse current
full cycle at T
L
=75°
C
Maximum DC Reverse Current
Ta =25°
C
at rated DC blocking voltage
T
L
=55°
C
Typical Junction Capacitance
(Note 1)
Maximum Reverse Recovery Time (Note 2)
Storage and Operation Junction Temperature
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir(av)
Ir
Cj
Trr
Tstg, Tj
SRGPP3J
600
420
600
3.0
125.0
1.3
30
5.0
100.0
50.0
90
-55 to +150
units
V
V
V
A
A
V
µA
µA
µA
pF
nS
°C
Note:
1. Measured at 1.0 MHz and applied voltage of 4.0Vdc
2. Test Condition If
=0.5A,
Ir =1.0A, Irr =0.25A
Rev.A1
www.gulfsemi.com
