Document Reference No.: FT_000151
DS_US232R-10(R-100/500) USB TO RS232 ADAPTER CABLE Data Sheet
Version 1.11
Clearance No.: #99

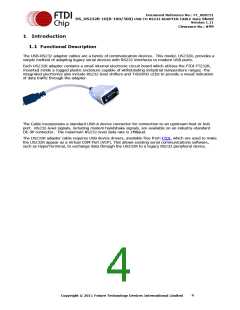

1.5 Cable Features
Adds one RS-232 serial port by connecting to USB
Special high gloss white finish enclosure design
Side-lit blue RXD and TXD traffic indicators
Enhanced RS232 transceiver gives serial port speed of up to 1MBaud.
Gold plated USB and DB9 connectors for enhanced connection reliability
Integral 10cm (US232R-10) or 100cm (US232R-100) or 500cm (US232R-500) USB cable with
moulded strain relief
Quality 4-layer PCB design
Easy plug & play installation and RS-232 device connection
Works with USB 1.1 & 2.0 Host and Hub ports
Industry Standard FTDI chip set & device drivers for maximum compatibility
Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers
Installs as a standard Windows COM port
COM port number can be changed to any available COM port number, including COM1 to COM4,
to support HyperTerminal, or any other serial communications software application running in
Windows
FIFO: 128 byte transmit buffer, 256 byte receive buffer
RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
Powered by USB port. No external power adapter required.
Serial Communication Parameters
o
o
o
o
Parity: None, Even, Odd
Data bits: 7, 8
Flow control: RTS/CTS , DSR/DTR, X-ON/X-OFF, None
Stop bits 1,2
Operating temperature of -20°C to +80°C
