FT232H SINGLE CHANNEL HI-SPEED USB TO MULTIPURPOSE UART/FIFO IC
Datasheet Version 1.82
Clearance No.: FTDI #199
8 Package Parameters
The FT232H is available in two different packages. The FT232HL is the LQFP-48 option and the FT232HQ

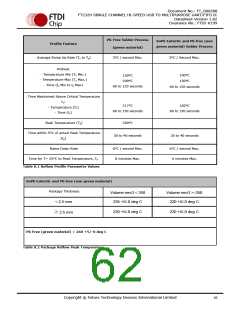

is the QFN-48 package option. The solder reflow profile for both packages is described in section 8.3
8.1 FT232HQ, QFN-48 Package Dimensions
Figure 8.1 48 pin QFN Package Details
Notes:
1. All dimensions are in mm.
2. The date code format is YYXX where XX = 2 digit week number, YY = 2 digit year number. This
is followed by the revision number.
3. The code XXXXXXX is the manufacturing LOT code.
4. The central soldering pad is floating. Connect it to GND.
