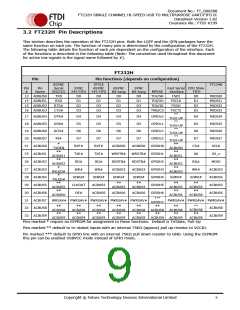

Configurable ACBUS I/O Pin. Function of this pin is configured in the device
EEPROM. If the external EEPROM is not fitted the default configuration is TriSt-PU.
See ACBUS Signal Options, Table 3.5.
30
31
32
33
ACBUS6
ACBUS7
ACBUS8
ACBUS9
I/O
I/O
I/O
I/O
Configurable ACBUS I/O Pin. Function of this pin is configured in the device
EEPROM. If the external EEPROM is not fitted the default configuration is TriSt-PD.
See ACBUS Signal Options, Table 3.5.
Configurable ACBUS I/O Pin. Function of this pin is configured in the device
EEPROM. If the external EEPROM is not fitted the default configuration is TriSt-PU.
See ACBUS Signal Options, Table 3.5.
Configurable ACBUS I/O Pin. Function of this pin is configured in the device
EEPROM. If the external EEPROM is not fitted the default configuration is TriSt-PU.
See ACBUS Signal Options, Table 3.5.
Table 3.4 UART Interface and ACBUS Group (see note 1)
Notes:
1. When used in Input Mode, the input pins are pulled to VCCIO via internal 75kΩ (approx) resistors.
These pins can be programmed to gently pull low during USB suspend (PWREN# = “1”) by setting an
option in the EEPROM.
