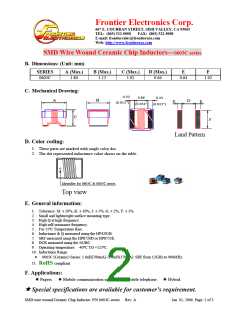

SMD Wire Wound Ceramic Chip Inductors—0603C series
B. Dimensions: (Unit: mm)
SERIES
A (Max.)
B (Max.)
C (Max.)
D (Max.)
E
F
0603C
1.80
1.12
1.02
0.64
0.64
1.02
C. Mechanical Drawing:
0.33
0.86
(0.034")
0.33
A
B
D
E
E
(0.013")
(0.013")
C
F
Land Pattern
D. Color coding:
1. These parts are marked with single color dot.
2. The dot represented inductance value shows on the table.
Identifier for 0603C & 0805C series.
Top view
E. General information:
1. Tolerance: M: ± 20%, K: ± 10%, J: ± 5%, G: ± 2%, F: ± 1%.
2. Small and lightweight surface mounting type.
3. High Q at high frequency.
4. High self-resonance frequency.
5. For 15ºC Temperature Rise.
6. Inductance & Q measured using the HP4291B.
7. SRF measured using the HP8720D or HP8753E.
8. DCR measured using the 502BC.
9. Operating temperature: -40°C TO +125ºC.
10. Inductance Range:
•
0603C (Ceramic) Series: 1.6nH(700mA)∼270nH(170mA). SRF from 12GHz to 900MHz.
11. RoHS compliant.
F. Applications:
Ä Pagers. Ä Mobile communication units. Ä Portable telephone. Ä Hybrid.
Ì Special specifications are available for customer’s requirement.
SMD wire wound Ceramic Chip Inductor: P/N 0603C-series Rev. A
Jan. 01, 2006. Page: 2 of 3
