56F807 Description
•
Because of an order from the United States International Trade Commission, BGA-packaged product lines and part numbers indicated here currently are not
available from Freescale for import or sale in the United States prior to September 2010: DSP56F807VF80, DSP56F807VF80E
•
•
•
•
•
•
•
•
•
•

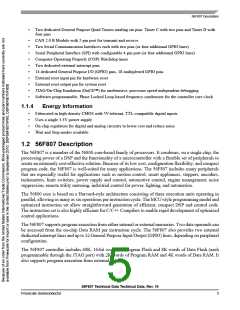

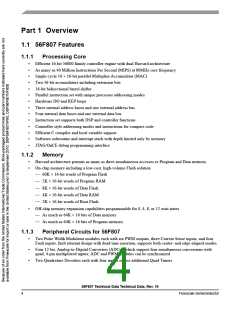

Two dedicated General Purpose Quad Timers totaling six pins: Timer C with two pins and Timer D with
four pins
CAN 2.0 B Module with 2-pin port for transmit and receive
Two Serial Communication Interfaces each with two pins (or four additional GPIO lines)
Serial Peripheral Interface (SPI) with configurable 4-pin port (or four additional GPIO lines)
Computer-Operating Properly (COP) Watchdog timer
Two dedicated external interrupt pins
14 dedicated General Purpose I/O (GPIO) pins, 18 multiplexed GPIO pins
External reset input pin for hardware reset
External reset output pin for system reset
JTAG/On-Chip Emulation (OnCE™) for unobtrusive, processor speed-independent debugging
Software-programmable, Phase Locked Loop-based frequency synthesizer for the controller core clock
1.1.4
•
•
•
•
Energy Information
Fabricated in high-density CMOS with 5V-tolerant, TTL-compatible digital inputs
Uses a single 3.3V power supply
On-chip regulators for digital and analog circuitry to lower cost and reduce noise
Wait and Stop modes available
1.2 56F807 Description
The 56F807 is a member of the 56800 core-based family of processors. It combines, on a single chip, the
processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to
create an extremely cost-effective solution. Because of its low cost, configuration flexibility, and compact
program code, the 56F807 is well-suited for many applications. The 56F807 includes many peripherals
that are especially useful for applications such as motion control, smart appliances, steppers, encoders,
tachometers, limit switches, power supply and control, automotive control, engine management, noise
suppression, remote utility metering, industrial control for power, lighting, and automation.
The 56800 core is based on a Harvard-style architecture consisting of three execution units operating in
parallel, allowing as many as six operations per instruction cycle. The MCU-style programming model and
optimized instruction set allow straightforward generation of efficient, compact DSP and control code.
The instruction set is also highly efficient for C/C++ Compilers to enable rapid development of optimized
control applications.
The 56F807 supports program execution from either internal or external memories. Two data operands can
be accessed from the on-chip Data RAM per instruction cycle. The 56F807 also provides two external
dedicated interrupt lines and up to 32 General Purpose Input/Output (GPIO) lines, depending on peripheral
configuration.
The 56F807 controller includes 60K, 16-bit words of Program Flash and 8K words of Data Flash (each
programmable through the JTAG port) with 2K words of Program RAM and 4K words of Data RAM. It
also supports program execution from external memory.
56F807 Technical Data Technical Data, Rev. 16
Freescale Semiconductor
5
