DM10152-H533-4H 参数 Datasheet PDF下载

DM10152-H533-4H图片预览
型号: DM10152-H533-4H
PDF下载: 下载PDF文件 查看货源
内容描述: [D Subminiature Connector]
分类和应用: 连接器
文件页数/大小: 1 页 / 1828 K
品牌: FOXCONN [ FOXCONN ]

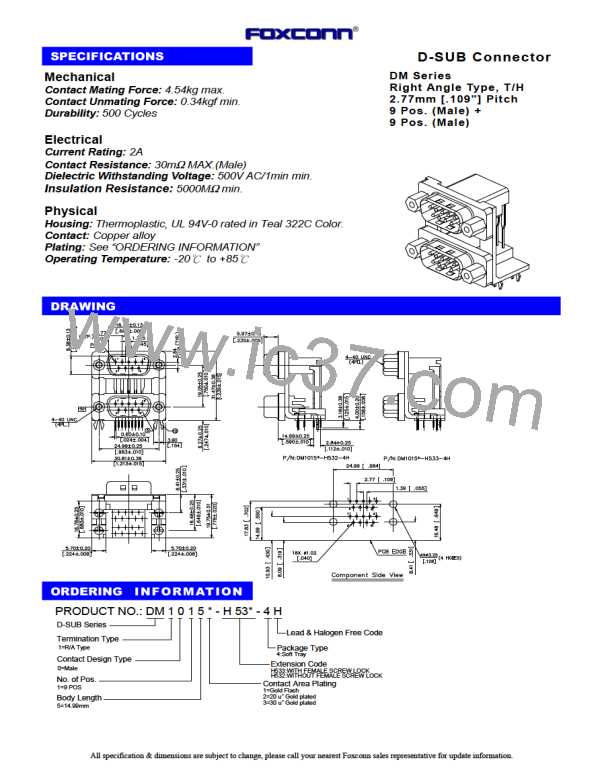

SPECIFICATIONS
D-SUB Connector
DM Series
Mechanical
Right Angle Type, T/H
2.77mm [.109"] Pitch
9 Pos. (Male) +
Contact Mating Force: 4.54kg max.
Contact Unmating Force: 0.34kgf min.
Durability: 500 Cycles
9 Pos. (Male)
Electrical
Current Rating: 2A
Contact Resistance: 30mMAX.(Male)
Dielectric Withstanding Voltage: 500V AC/1min min.
Insulation Resistance: 5000M
min.
Physical
Housing: Thermoplastic, UL 94V-0 rated in Teal 322C Color.
Contact: Copper alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -20to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: DM 1 0 1 5 * - H 53* - 4 H
D-SUB Series
Lead & Halogen Free Code
Termination Type
1=R/A Type
Package Type
4:Soft Tray
Contact Design Type
0=Male
Extension Code
H533:WITH FEMALE SCREW LOCK
H532:WITHOUT FEMALE SCREW LOCK
No. of Pos.
1=9 POS
Contact Area Plating
1=Gold Flash
2=20 u" Gold plated
3=30 u" Gold plated
Body Length
5=14.99mm
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
