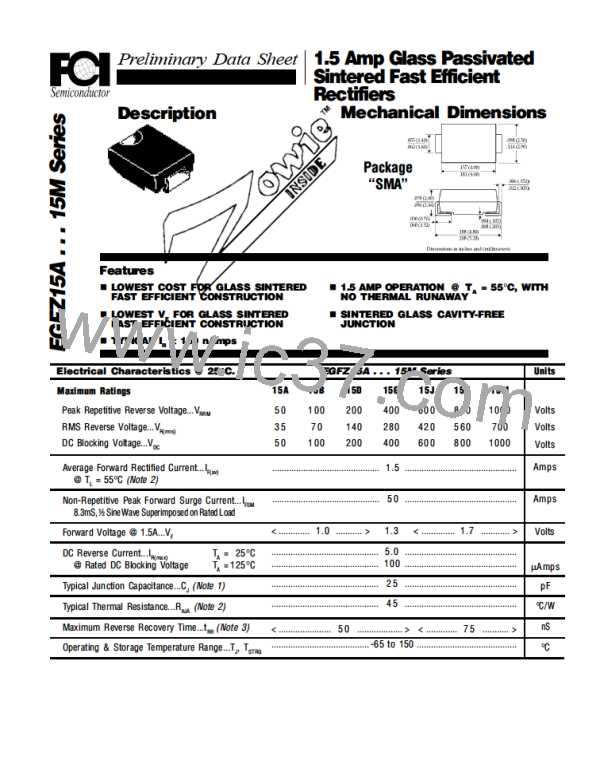

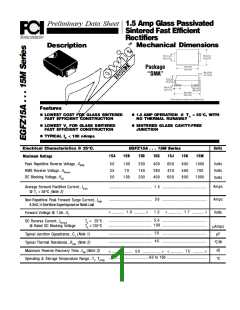

Preliminary Data Sheet
1.5 Amp Glass Passivated
Description
Sintered Fast Efficient
Rectifiers
EGFZ15A . . . 15M Series
Mechanical Dimensions
Package
‘‘SMA’’
Features
n
LOWEST COST FOR GLASS SINTERED
FAST EFFICIENT CONSTRUCTION
n
LOWEST V
F
FOR GLASS SINTERED
FAST EFFICIENT CONSTRUCTION
n
TYPICAL I
R
< 100 nAmps
EGFZ15A . . . 15M Series
15A
50
35
50
15B
100
70
100
15D
200
140
200
15G
400
280
400
15J
600
420
600
15K
800
560
800
15M
1000
700
1000
Volts
Volts
Volts
Amps
Amps
Volts
µAmps
pF
°C
/ W
nS
°C
Units
n
1.5 AMP OPERATION @ T
A
= 55°C, WITH
NO THERMAL RUNAWAY
n
SINTERED GLASS CAVITY-FREE
JUNCTION
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
@ T
L
= 55°C
(Note 2)
Non-Repetitive Peak Forward Surge Current...I
FSM
8.3mS, �½ Sine Wave Superimposed on Rated Load
Forward Voltage @ 1.5A...V
F
DC Reverse Current...I
R(max)
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 125°C
............................................. 1.5 ...............................................
............................................. 5 0 ...............................................
< ............. 1.0 ........... >
1.3
< .............. 1.7 ............ >
............................................. 5.0 ...............................................
............................................. 1 0 0 ...............................................
............................................. 2 5 ...............................................
............................................. 4 5 ...............................................
< ...................... 5 0 ................... > < ............. 7 5 ........... >
......................................... -65 to 150 ..........................................
Typical Junction Capacitance...C
J
(Note 1)
Typical Thermal Resistance...R
θJA
(Note 2)
Maximum Reverse Recovery Time...t
RR
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
