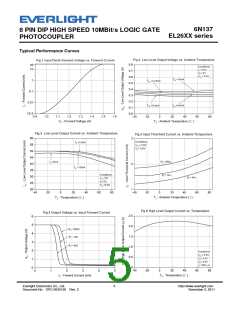

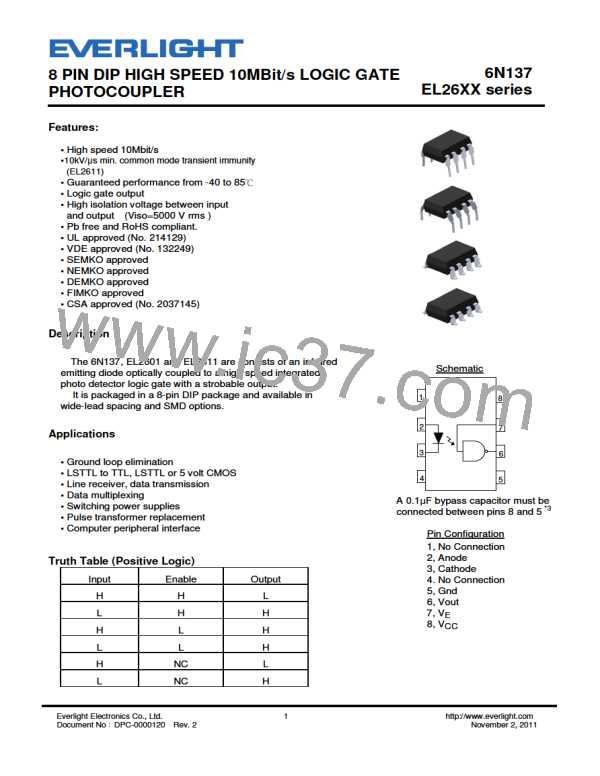

6N137
EL26XX series
8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE
PHOTOCOUPLER

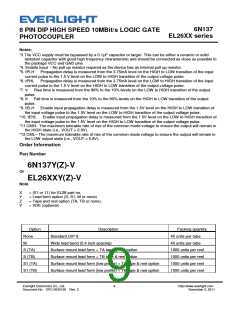

Notes:
*3 The VCC supply must be bypassed by a 0.1µF capacitor or larger. This can be either a ceramic or solid
tantalum capacitor with good high frequency characteristic and should be connected as close as possible to
the package VCC and GND pins
*4. Enable Input – No pull up resistor required as the device has an internal pull up resistor.

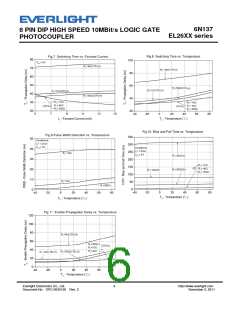

Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input
*5. tPLH
current pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse.
Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input
*6. tPHL
current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse.
*7. tr
pulse.
*8. tf
pulse.
*9. tELH
Rise time is measured from the 90% to the 10% levels on the LOW to HIGH transition of the output
Fall time is measured from the 10% to the 90% levels on the HIGH to LOW transition of the output
Enable input propagation delay is measured from the 1.5V level on the HIGH to LOW transition of
the input voltage pulse to the 1.5V level on the LOW to HIGH transition of the output voltage pulse.
*10. tEHL
Enable input propagation delay is measured from the 1.5V level on the LOW to HIGH transition of
the input voltage pulse to the 1.5V level on the HIGH to LOW transition of the output voltage pulse.

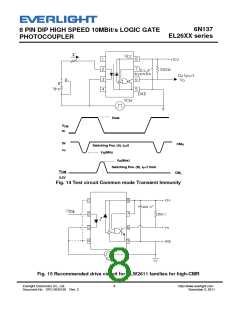

*11 CMH– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in
the HIGH state (i.e., VOUT > 2.0V).
*12 CML– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in
the LOW output state (i.e., VOUT < 0.8V).

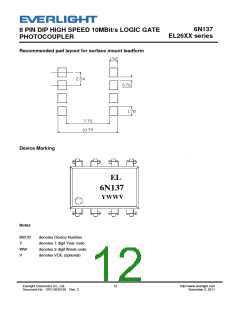

Order Information
Part Number
6N137Y(Z)-V
Or
EL26XXY(Z)-V
Note
X
Y
Z
V
= (01 or 11) for EL26 part no.
= Lead form option (S, S1, M or none)
= Tape and reel option (TA, TB or none).
= VDE (optional)

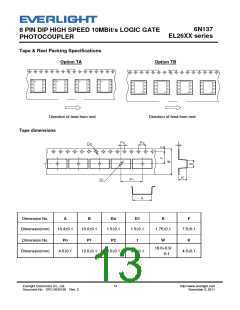

Option
None
Description
Packing quantity
45 units per tube
45 units per tube
1000 units per reel
1000 units per reel
1000 units per reel
1000 units per reel

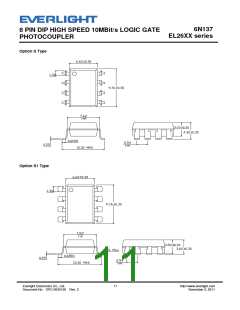

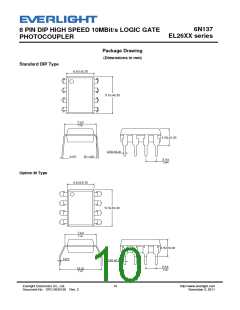

Standard DIP-8
M
Wide lead bend (0.4 inch spacing)
S (TA)
S (TB)
S1 (TA)
S1 (TB)
Surface mount lead form + TA tape & reel option
Surface mount lead form + TB tape & reel option
Surface mount lead form (low profile) + TA tape & reel option
Surface mount lead form (low profile) + TB tape & reel option
Everlight Electronics Co., Ltd.
Document No DPC-0000120 Rev. 2
9
http://www.everlight.com
November 2, 2011
