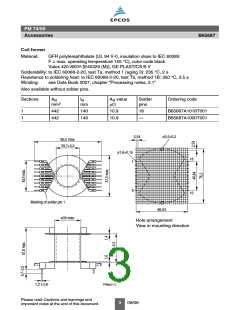

PM 74/59
Accessories
B65687
Coil former
Material:
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
max. operating temperature 155 °C), color code black
F
Valox 420-SE0® E45329 (M) , GE PLASTICS B V
[
]
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s
Winding:
see Data Book 2007, chapter “Processing notes, 2.1”
Also available without solder pins.
Sections
AN
mm2
lN
mm
AR value
µΩ
Solder
pins
Ordering code
1
1
442
442
140
140
10.9
10.9
18
—
B65687A1018T001
B65687A1000T001
2,54
ø3,5+0,2
85,5 max.
29,7+0,3
ø1,6+0,15
18
10
1
9
Marking of solder pin 1
66,04
ø33 max.
HoleHaolreraarnragnegmemeennttview
View in mounting direction
in mounting direction
1,2 x 0,6
FPM0021-C
Please read Cautions and warnings and
Important notes at the end of this document.
3
09/06
