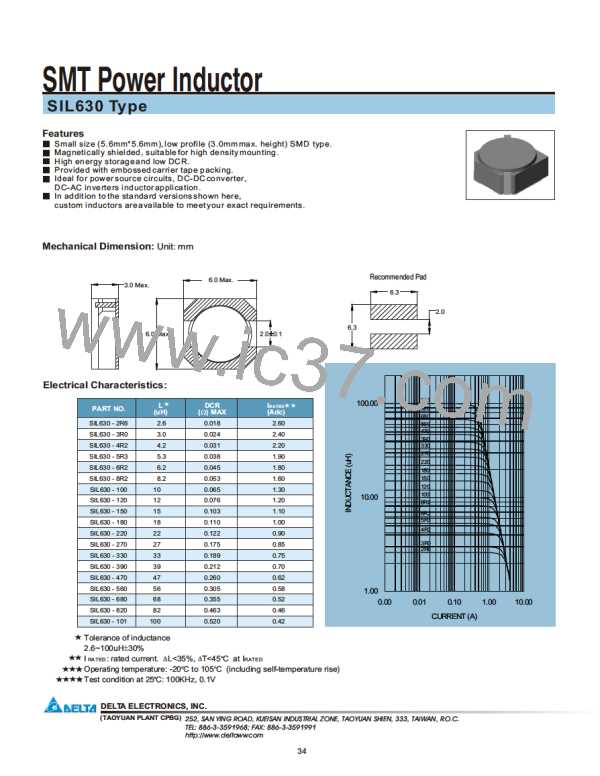

SMT Power Inductor
SIL630 Type
Features
Small size (5.6mm*5.6mm), low profile (3.0mm max. height) SMD type.
Magnetically shielded, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter,
DC-AC inverters inductor application.
In addition to the standard versions shown here,
custom inductors are available to meet your exact requirements.
Mechanical Dimension:
Unit: mm
Recommended Pad
6.3
2.0
6.3
6.0 Max.
2.0 0.1
3.0 Max.
6.0 Max.
Electrical Characteristics:
PART NO.
SIL630 - 2R6
SIL630 - 3R0
SIL630 - 4R2
SIL630 - 5R3
SIL630 - 6R2
SIL630 - 8R2
SIL630 - 100
SIL630 - 120
SIL630 - 150
SIL630 - 180
SIL630 - 220
SIL630 - 270
SIL630 - 330
SIL630 - 390
SIL630 - 470
SIL630 - 560
SIL630 - 680
SIL630 - 820
SIL630 - 101
L
(uH)
2.6
3.0
4.2
5.3
6.2
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
DCR
( ) MAX
0.018
0.024
0.031
0.038
0.045
0.053
0.065
0.076
0.103
0.110
0.122
0.175
0.189
0.212
0.260
0.305
0.355
0.463
0.520
I
RATED
(Adc)
2.60
2.40
2.20
1.90
1.80
1.60
1.30
1.20
1.10
1.00
0.90
0.85
0.75
0.70
0.62
0.58
0.52
0.46
0.42
100.00
INDUCTANCE (uH)
101
820
680
560
470
390
330
270
220
180
150
120
100
8R2
6R2
5R3
4R2
3R0
2R6
10.00
1.00
0.00
0.01
0.10
CURRENT (A)
1.00
10.00
Tolerance of inductance
2.6~100uH 30%
I
RATED
: rated current. L<35%, T<45
o
C at I
RATED
Operating temperature: -20
o
C to 105
o
C (including self-temperature rise)
Test condition at 25
o
C: 100KHz, 0.1V
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
