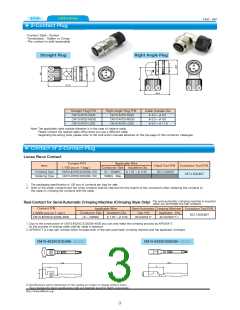

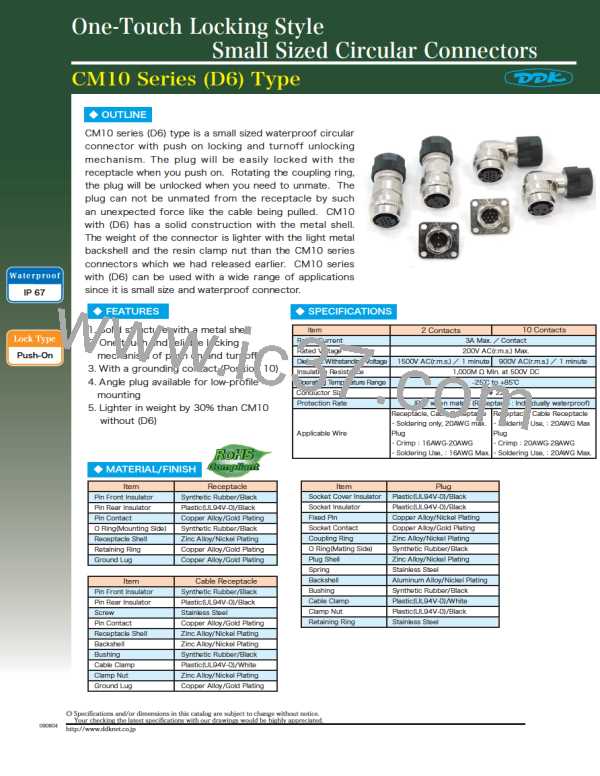

CM10 Series
Unit：mm
○ 2-Contact Plug
・Contact Style : Socket
・Termination：Solder or Crimp
・The contact is sold separately.
Straight Plug
Right Angle Plug
１
２
１
２
(51.4)
(32.5)
Straight Plug P/N
CM10-SP2S-S(D6)
CM10-SP2S-M(D6)
CM10-SP2S-L(D6)
Right Angle Plug P/N
Cable Outside Dia.
φ 4.0 ～φ 6.0
φ 6.0 ～φ 9.0
CM10-AP2S-S(D6)
CM10-AP2S-M(D6)
CM10-AP2S-L(D6)
φ 9.0 ～φ 11.6
Note: The applicable cable outside diameter is in the case of cabtyre cable.
Please contact the nearest sales office when you use a different cable.
Regarding the wiring tools, please refer to the instruction manuals attached on the top-page of this connector catalogue.
○ Contact of 2-Contact Plug
Loose Piece Contact
ꢀꢀꢀ
( 100 pcs in 1 bag )
CM10-#22SC(C3)(D8)-100
CM10-#22SC(S2)(D8)-100
ꢀ
Contact P/N
Applicable Wire
Item
Hand Tool P/N
357J-50448T
Extraction Tool P/N
357J-50548T
Conductor Size
16 ～ 20AWG
16AWGꢀMax.
Insulation Dia.
φ 1.87 ～φ 2.45
Crimping Type
Soldering Type
1. The packaging specification is 100 pcs of contacts per bag for sale.
２．Both of the solder contacts and the crimp contacts shall be inserted into the inserts of the connectors after soldering the contacts to
the cable or crimping the contacts with the cable.
The semi-automatic crimping machine is required
Reel Contact for Semi-Automatic Crimping Machine (Crimping Style Only)
when you terminate the reel contacts.
ꢀ
Contact P/N
Applicable Wire
Semi-Automatic Crimping Machine Extraction Tool P/N
1set P/N
ApplicatorꢀP/N
AP-A50541T-1
Conductor Size
Insulation Dia.
φ 1.87 ～φ 2.45
( 4,000 pcs on 1 reel )
CM10-#22SC(C3)(D8)-4000
357J-50548T
16 ～ 20AWG
AP-A50541T
1. Due to the construction of CM10-#22SC-(C3)(D8)-4000 you can only make the crimping process by AP50541T.
So the process of striping cable shall be made in advance.
ꢀ 2. AP50541T is a set part number which includes both of the semi-automatic crimping machine and the applicator (crimper).
CM10-#22SC(C3)(D8)- □□□□
CM10-#22SC(S2)(D8)- □□□□
15.6
15.6
6
6
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
ꢀ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
