MEGA BRIGHT LED
BTL-35BLCS-XX-X

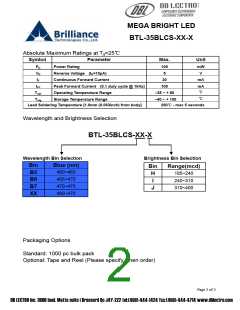

Absolute Maximum Ratings at Ta=25℃
Symbol
Parameter
Max.
100
5
Unit
mW
V
PD
VR
Power Rating
Reverse Voltage (IR=10µA)
Continuous Forward Current
IF
30
mA
IFP
Peak Forward Current (0.1 duty cycle @ 1kHz)
Operating Temperature Range
100
mA
℃
Topr
Tstg
–35 ~ + 80
–40 ~ + 100
℃
Storage Temperature Range
Lead Soldering Temperature [1.6mm (0.063inch) from body]
260℃ - max 5 seconds
Wavelength and Brightness Selection
BTL-35BLCS-XX-X
Wavelength Bin Selection
Brightness Bin Selection
Bin
B5
B6
B7
XX
Blue (nm)
460~465
465~470
470~475
460~475
Bin
H
I
Range(mcd)
185~240
240~310
310~400
J
Packaging Options
Standard: 1000 pc bulk pack
Optional: Tape and Reel (Please specify when order)
Page 2 of 3
DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
