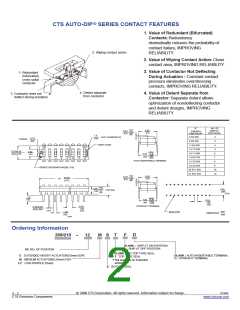

CTS AUTO-DIP® SERIES CONTACT FEATURES
1. Value of Redundant (Bifurcated)
Contacts:Redundancy
dramatically reduces the probability of
contact failure, IMPROVING
RELIABILITY.
2. Wiping contact action
2. Value of Wiping Contact Action: Clean
contact area, IMPROVING RELIABILITY.
3. Value of Contactor Not Deflecting
During Actuation : Constant contact
pressure eliminates overstressing
contacts, IMPROVING RELIABILITY.
1. Redundant
(bifurcated)
cross radial
contactor
4. Detent separate
from contactor
4. Value of Detent Separate from
Contactor: Separate detent allows
optimization of nondeflecting contactor
and detent designs, IMPROVING
RELIABILITY.
3. Contactor does not
deflect during actuation
"A"
OVERALL
DIMENSION
NO. OF
SWITCH
POSITIONS
+0.15
-0.00
+.005
-.000
8.00
.315
0.25
.010
1.0
.039
6.55/.258
9.09/.358
2
3
X45° CHAMFER (2)
0.70
.028
TRAVEL
DATE CODE
11.63/.458
14.17/.558
16.71/.658
19.25/.758
21.79/.858
24.33/.958
26.87/1.058
31.95/1.258
4
ON
CTS
5
6.70±0.25
.264±.010
3.62
.143
+0.64
6
8.25
.325
-0.38
+.025
-.015
7
10
11 12
1
2
4
5
3
AUTO INSERTABLE TERMINAL
8
9
SERIES DESIGNATION(209, 210)
10
12
+0.15
-0.00
+.005
-.000
8.00
.315
0.25
.010
±0.30
"A"
±.012
+0.05
3.80 -0.10
7.62
.300
4.58 max
.150 +.002
-.004
TYP.
3.2
.126
+0.64
7.62 -0.38
2.54
.100
TYP.
+.025
.300
-.015
STRAIGHT TERMINAL
2.54
.100
TYP.
0.55±0.08
.022±.003
TYP.
mm
Ø 0.8 TYP.
1.50
.059
DIMENSION:
inch
TYP.
Ordering Information
D
F
209/210
12
M S
T
–
BLANK : SHIP AT ON POSITION
F : SHIP AT OFF POSITION
XX: NO. OF POSITION
BLANK : NO TOP TAPE SEAL
T: TOP TAPE SEAL
Not available on Extended
actuator
E: EXTENDED HEIGHT ACTUATOR(0.6mm/.024”)
M: MEDIUM ACTUATOR(0.25mm/.010”)
LP: LOW PROFILE (Flush)
BLANK : AUTO-INSERTABLE TERMINAL
D : STRAIGHT TERMINAL
*
*
S: BOTTOM SEAL
© 2008 CTS Corporation. All rights reserved. Information subject to change.
2/19/08
2 - 2
