H11L1, H11L2, H11L3

Schmitt Trigger Output 6-Pin Optocoupler

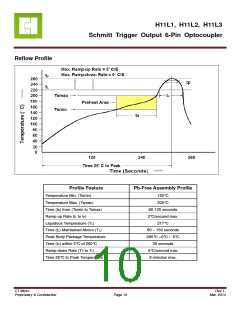

Reflow Profile

Profile Feature

Pb-Free Assembly Profile

150°C

Temperature Min. (Tsmin)

Temperature Max. (Tsmax)

Time (ts) from (Tsmin to Tsmax)

Ramp-up Rate (t_Lto t_P)

200°C

60-120 seconds

3°C/second max.

217°C

Liquidous Temperature (T_L)

Time (t_L) Maintained Above (T_L)

Peak Body Package Temperature

Time (t_P) within 5°C of 260°C

Ramp-down Rate (T_Pto T_L)

Time 25°C to Peak Temperature

60 – 150 seconds

260°C +0°C / -5°C

30 seconds

6°C/second max

8 minutes max.
