NAH,NAC,NAM,NAP series

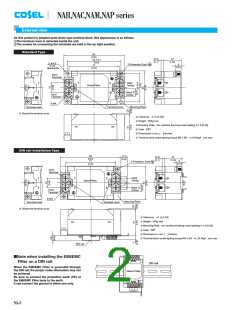

External view
As this product is adopted push-down type terminal block, this appearance is as follows.
1The terminal cover is retracted inside the unit.
2The screws for connecting the terminals are held in the up right position.
Standard Type
92
[3.62]
(2.5)
[0.1]
27
[1.06]
0.5
[3.23]
82
2-f4.8
2-Protection Earth
8
77
[0.19]
[0.31]
[3.03]
Mounting Hole
Input
Terminal
Output
Name Plate
Terminal
Output
Input
Terminal
Terminal
6-M4
Mounting Plate
Terminal cover
Terminal cover
¶ Closed the terminal cover
¶ Tolerance : 1 [ 0.04]
¶ Weight : 300g max
¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶ Case : PBT
¶ Dimensions in mm, [ ]=inches
¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
DIN rail installation Type
92
[3.62]
77
(11)
[0.43]
(2.5)
[0.1]
27
[1.06]
8
2-Protection Earth
[0.31]
[3.03]
Input
Terminal
Output
Name Plate
Terminal
Output
Input
Terminal
Terminal
6-M4
Mounting Plate
Terminal cover
Terminal cover
¶ Closed the terminal cover
¶ Tolerance : 1 [ 0.04]
¶ Weight : 300g max
¶ Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶ Case : PBT
¶ Dimensions in mm, [ ]=inches
¶ Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
DIN rail
Note when installing the EMI/EMC
¡
Filter on a DIN rail.
DIN rail
When the EMI/EMC Filter is grounded through
the DIN rail, the proper noise attenuation may not
be achieved.
Name Plate
Be sure to connect the protection earth (PE) of
the EMI/EMC Filter body to the earth.
It can connect the ground to either one only.
NA-5
