Optional Parts
ACE Series
MAX Series

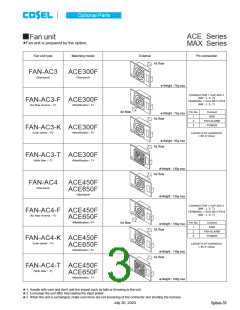

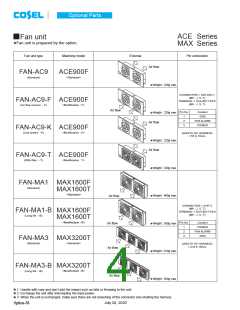

Fan unit
Fan unit is prepared by the option.
Fan unit type
Matching model
External
Pin connection
Air flow
FAN-AC3 ACE300F
(Standard)
<Standard>
Weight : 75g max
CONNECTOR = XAP-03V-1
(Mfr : J. S. T)
TERMINAL = SXA-001T-P0.6
(Mfr : J. S. T)
FAN-AC3-F ACE300F
(Air flow reverse : -F)
<Modification : F>
Pin No.
Content
GND
Air flow
Weight : 75g max
Air flow
1
2
3
FAN ALARM
POWER
FAN-AC3-K ACE300F
(Low speed : -K)
<Modification : K>
LENGTH OF HARNESS
= 60 10mm
Weight : 85g max
Air flow
FAN-AC3-T ACE300F
(With filter : -T)
<Modification : T>
Weight : 130g max
Air flow
FAN-AC4 ACE450F
(Standard)
ACE650F
<Standard>
Weight : 130g max
CONNECTOR = XAP-03V-1
(Mfr : J. S. T)
TERMINAL = SXA-001T-P0.6
(Mfr : J. S. T)
FAN-AC4-F ACE450F
(Air flow reverse : -F)
ACE650F
<Modification : F>
Pin No.
Content
GND
Air flow
Weight : 130g max
Air flow
1
2
3
FAN ALARM
POWER
FAN-AC4-K ACE450F
(Low speed : -K)
LENGTH OF HARNESS
= 55 10mm
ACE650F
<Modification : K>
Weight : 130g max
Air flow
FAN-AC4-T ACE450F
(With filter : -T)
ACE650F
<Modification : T>
Weight : 180g max
1 Handle with care and don’t add the impact such as falls or throwing to the unit.
2 Exchange the unit after intercepting the input power.
3 When the unit is exchanged, make sure there are not loosening of the connector and shutting the harness.
