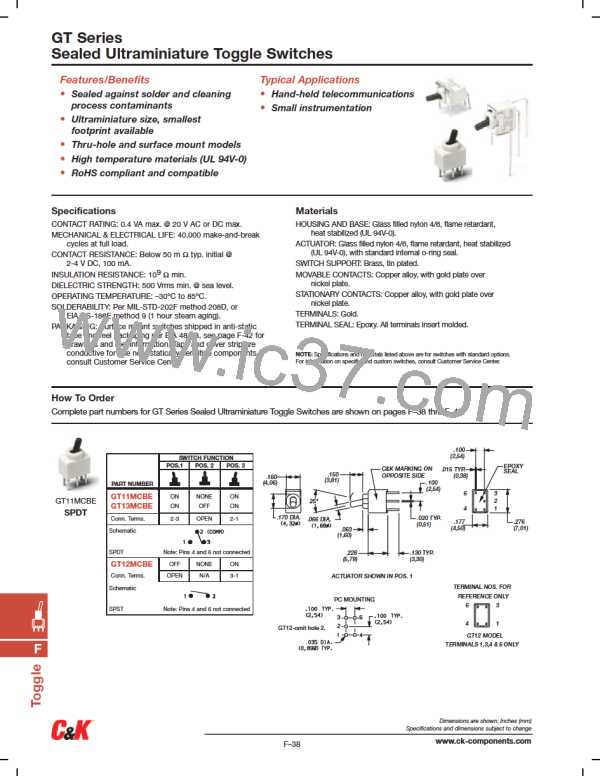

GT Series
Sealed Ultraminiature Toggle Switches
Features/Benefits
•
Sealed against solder and cleaning
process contaminants
Typical Applications
•
Hand-held telecommunications
•
Small instrumentation
•
Ultraminiature size, smallest
footprint available
•
Thru-hole and surface mount models
•
High temperature materials (UL 94V-0)
•
RoHS compliant and compatible
Specifications
CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max.
MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break
cycles at full load.
CONTACT RESISTANCE: Below 50 m
Ω
typ. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 500 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).

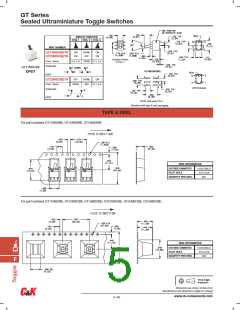

PACKAGING: Surface mount switches shipped in anti-static
tape and reel packaging per EIA 481-3, see page F-42 for
drawings and reel information. Tape and cover strip are
conductive for use near statically sensitive components,
consult Customer Service Center.
Materials
HOUSING AND BASE: Glass filled nylon 4/6, flame retardant,
heat stabilized (UL 94V-0).
ACTUATOR: Glass filled nylon 4/6, flame retardant, heat stabilized
(UL 94V-0), with standard internal o-ring seal.
SWITCH SUPPORT: Brass, tin plated.
MOVABLE CONTACTS: Copper alloy, with gold plate over
nickel plate.
STATIONARY CONTACTS: Copper alloy, with gold plate over
nickel plate.
TERMINALS: Gold.
TERMINAL SEAL: Epoxy. All terminals insert molded.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order

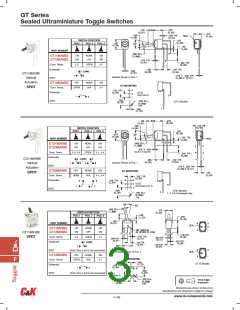

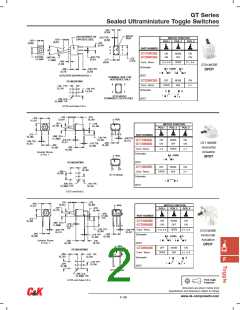

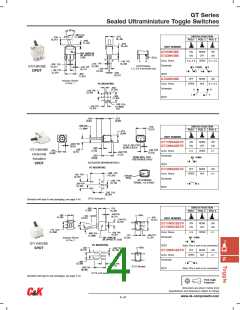

Complete part numbers for GT Series Sealed Ultraminiature Toggle Switches are shown on pages F–38 thru F–42.
SWITCH FUNCTION
POS.1
POS. 2
POS. 3
PART NUMBER
.160
(4,06)
.150
(3,81)
.100
(2,54)
C&K MARKING ON
.015 TYP.
(0,38)
OPPOSITE SIDE
.100
(2,54)
6
4
.170 DIA.
.066 DIA.
.063
(1,60)
.020 TYP.
(0,51)
.177
(4,50)
EPOXY
SEAL
GT11MCBE
SPDT
GT11MCBE
GT13MCBE
Conn. Terms.
Schematic
ON
ON
2-3
NONE
OFF
OPEN
ON
ON
2-1
3
2
1
.276
(7,01)
SPDT
Note: Pins 4 and 6 not connected
OFF
OPEN
NONE
N/A
ON
3-1
GT12MCBE
Conn. Terms.
Schematic
.228
(5,79)
.130 TYP.
(3,30)
ACTUATOR SHOWN IN POS. 1
TERMINAL NOS. FOR
PC MOUNTING
REFERENCE ONLY
6
4
3
1
SPST
Note: Pins 4 and 6 not connected
GT12-omit hole 2.
GT12 MODEL
F
TERMINALS 1,3,4 & 6 ONLY
Toggle
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
