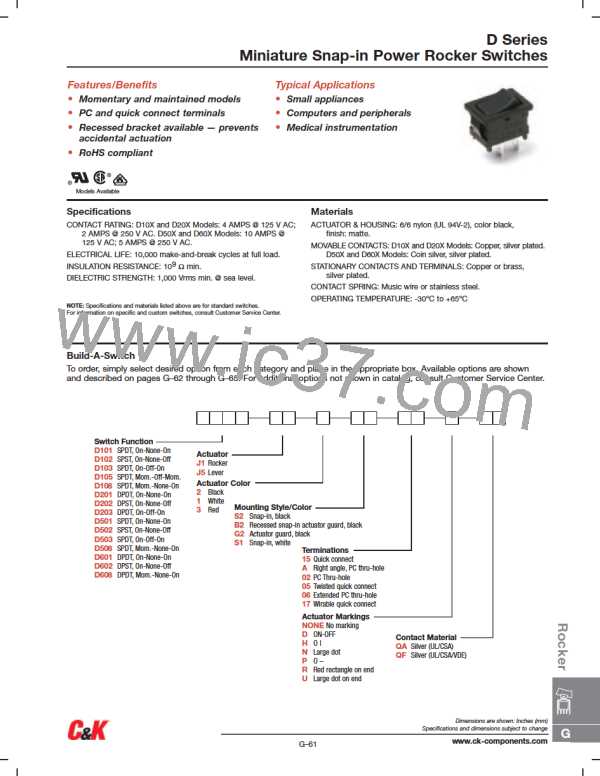

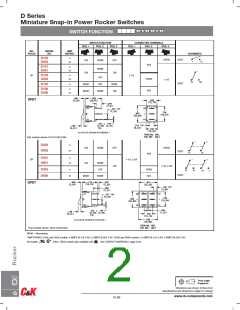

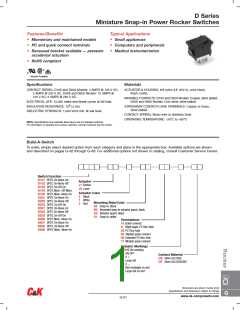

D Series
Miniature Snap-in Power Rocker Switches

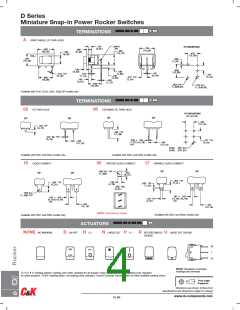

TERMINATIONS
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
Available with D101, D102, D501, D502 SP models only.
TERMINATIONS
02 PC THRU-HOLE
06 EXTENDED PC THRU-HOLE
PC MOUNTING
(02 and 06)
SP
DP
SP
DP
Available with DX01 and DX02 models only.
Available with DX01 and DX02 models only.
15 QUICK CONNECT
05 TWISTED QUICK CONNECT
17 WIRABLE QUICK CONNECT
SP
DP
SP
DP
NOTE: Terminals are twisted.
Available with DX01 and DX02 models only.
Available with DX01 and DX02 models only.

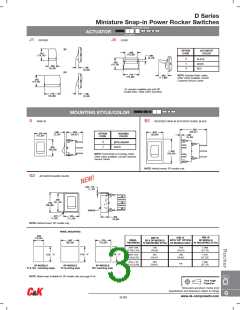

ACTUATORS
NONE NO MARKING
D
ON-OFF
H
O |
N
LARGE DOT
P
O –
R
RED RECTANGLE
ON END
U
LARGE DOT ON END
ON
I
OFF
O
O
NOTE: Orientation of actuator
markings and terminals.
‘D, H, P & U’ marking options: marking color white, standard for all actuator colors except white. Black marking color, standard
for white actuators. ‘R & N’ marking option: red marking color, standard. Consult Customer Service Center for other available marking colors.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G
www.ck-components.com
G–64
