4.6.2
I²C Mode
In I²C mode, SDA is a bidirectional data line. Data is clocked into and out of the part by the clock, SCL.
There is no CS pin. Pins AD0 and AD1 form the two least-significant bits of the chip address and should
be connected through a resistor to VLC or DGND as desired. The state of the pins is sensed while the
CS42416 is being reset.
The signal timings for a read and write cycle are shown in Figure 22 and Figure 23. A Start condition is
defined as a falling transition of SDA while the clock is high. A Stop condition is a rising transition while
the clock is high. All other transitions of SDA occur while the clock is low. The first byte sent to the
CS42416 after a Start condition consists of a 7-bit chip address field and a R/W bit (high for a read, low
for a write). The upper 5 bits of the 7-bit address field are fixed at 10011. To communicate with a CS42416,
the chip address field, which is the first byte sent to the CS42416, should match 10011, followed by the
settings of the AD1 and AD0. The eighth bit of the address is the R/W bit. If the operation is a write, the

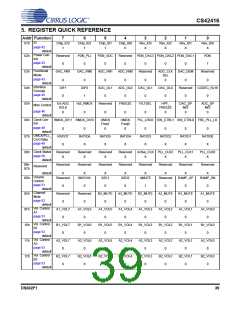

next byte is the Memory Address Pointer (MAP) which selects the register to be read or written. If the op-
eration is a read, the contents of the register pointed to by the MAP will be output. Setting the auto-incre-
ment bit in MAP allows successive reads or writes of consecutive registers. Each byte is separated by an
acknowledge bit. The ACK bit is output from the CS42416 after each input byte is read and is input to the
CS42416 from the microcontroller after each transmitted byte.
26
27 28
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19
24 25
SCL
SDA
DATA +1
DATA +n
CHIP ADDRESS (WRITE)
0 0 1 1 AD1 AD0
MAP BYTE
DATA
1
0
INCR
6
5
4
3
2
1
0
7
6
1
0
7
6
1
0
7
6
1
0
ACK
ACK
ACK
ACK
STOP
START
Figure 22. Control Port Timing, I²C Write
