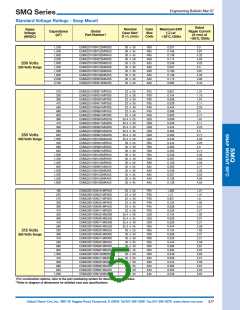

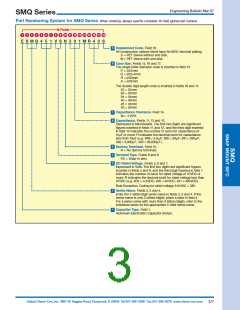

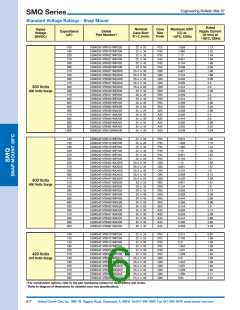

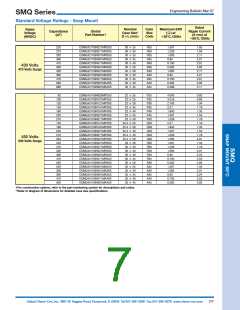

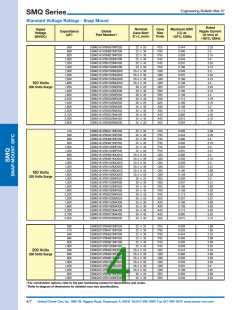

 浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第2页浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第3页浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第4页浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第5页浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第6页浏览型号ESMQ451VSN331MR40S的Datasheet PDF文件第7页

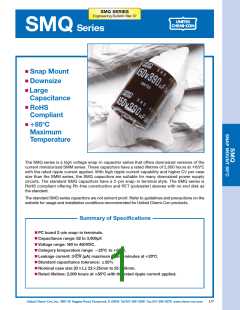

SMQ SERIES
SMQ
Series
Snap Mount
Downsize
Large
Capacitance
RoHS
Compliant
85 C
Maximum
Temperature
Engineering Bulletin Mar 07
SNAP MOUNT 85 C
SMQ
The SMQ series is a high voltage snap-in capacitor series that offers downsized versions of the
current miniaturized SMM series. These capacitors have a rated lifetime of 2,000 hours at 85 C
with the rated ripple current applied. With high ripple current capability and higher CV per case
size than the SMM series, the SMQ capacitors are suitable for many downsized power supply
circuits. The standard SMQ capacitors have a 2-pin snap-in terminal style. The SMQ series is
RoHS compliant offering Pb-free construction and PET (polyester ) sleeves with no end disk as
the standard.
The standard SMQ series capacitors are
not
solvent proof. Refer to guidelines and precautions on the
website for usage and installation conditions recommended for United Chemi-Con products.
Summary of Specifications
PC board 2-pin snap-in terminals.
Capacitance range: 82 to 3,900µF.
Voltage range: 160 to 450VDC.
Category temperature range: 25 C to 85 C.
Leakage current: 3 CV (µA) maximum after 5 minutes at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 22 25mm to 35 50mm.
Rated lifetime: 2,000 hours at 85 C with the rated ripple current applied.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1/ 7
