SMH SERIES
Engineering Bulletin Mar 07
SMHSeries
Snap Mount
Large
Capacitance
High CV
High Ripple
RoHS
Compliant
85C
Maximum
Temperature

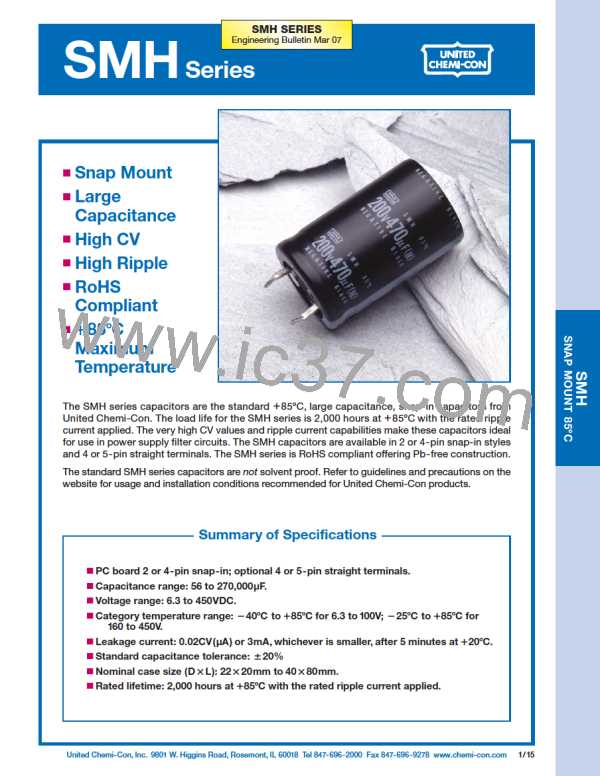

The SMH series capacitors are the standard 85C, large capacitance, snap-in capacitors from
United Chemi-Con. The load life for the SMH series is 2,000 hours at 85C with the rated ripple
current applied. The very high CV values and ripple current capabilities make these capacitors ideal

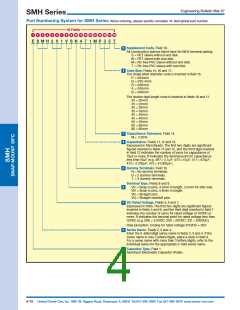

for use in power supply filter circuits. The SMH capacitors are available in 2 or 4-pin snap-in styles
and 4 or 5-pin straight terminals. The SMH series is RoHS compliant offering Pb-free construction.
The standard SMH series capacitors are not solvent proof. Refer to guidelines and precautions on the
website for usage and installation conditions recommended for United Chemi-Con products.

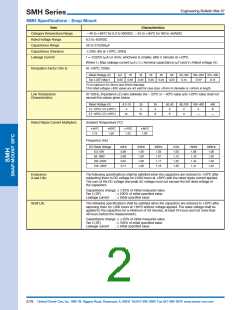

Summary of Specifications
PC board 2 or 4-pin snap-in; optional 4 or 5-pin straight terminals.
Capacitance range: 56 to 270,000µF.

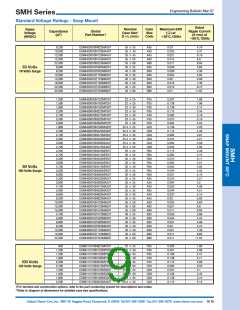

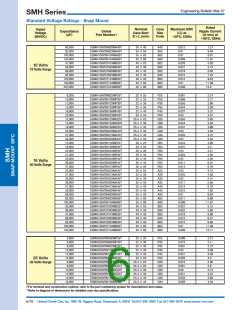

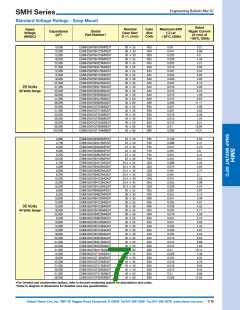

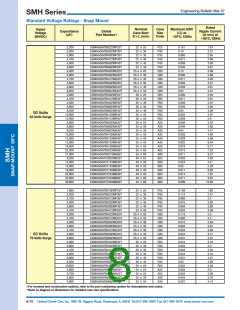

Voltage range: 6.3 to 450VDC.
Category temperature range: 40C to 85C for 6.3 to100V; 25C to 85C for
160 to 450V.
Leakage current: 0.02CV(µA) or 3mA, whichever is smaller, after 5 minutes at 20C.
Standard capacitance tolerance: 20%

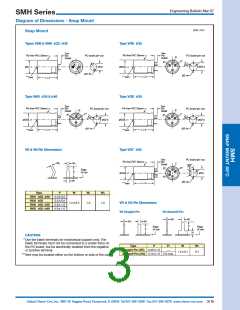

Nominal case size (DL): 2220mm to 4080mm.
Rated lifetime: 2,000 hours at 85C with the rated ripple current applied.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
