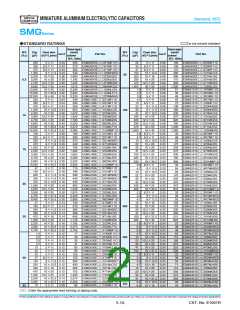

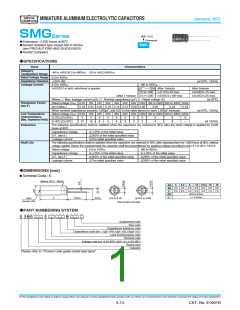

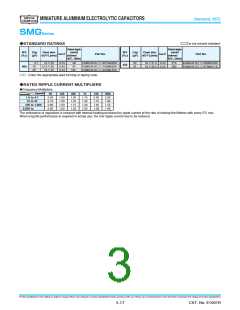

 浏览型号ESMG100ELL682ML25S的Datasheet PDF文件第2页浏览型号ESMG100ELL682ML25S的Datasheet PDF文件第3页
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
Standard, 85℃
SMG
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Series
SMQ P5-9
Downsized
・Endurance
: 2,000 hours at 85℃
・Solvent
resistant type except 350 to 450V
dc
(see PRECAUTIONS AND GUIDELINES)
・RoHS2
Compliant
SMG
◆SPECIFICATIONS
Characteristics
-40 to +85℃(6.3 to 400V
dc
) -25 to +85℃(450V
dc
)
(at 20℃, 120Hz)
160 to 450V
dc
Time
After 1minute
After 5minute
CV
CV≦1,000
I=0.1CV+40 max.
I=0.03CV+15 max.
(after 1 minute) CV>1,000
I=0.04CV+100 max.
I=0.02CV+25 max.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃)
Rated voltage (V
dc
) 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 350 to 400V 450V
tanδ(Max.)
0.34 0.24 0.20 0.16 0.14 0.12 0.09 0.08
0.20
0.24
0.24
When nominal capacitance exceeds 1,000µF, add 0.02 to the value above for each 1,000µF increase.
(at 20℃, 120Hz)
Rated voltage (V
dc
) 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 350 to 400V 450V
Z(-25℃)/Z(+20℃)
5
4
3
2
2
2
2
2
3
6
6
Z(-40℃)/Z(+20℃)
12
10
8
5
4
3
3
3
4
6
-
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000
hours at 85℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage
6.3 to 100V
dc
160 to 450V
dc
Capacitance change
≦±20%
of the initial value
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
≦500%
of the initial specified value
6.3 to 450V
dc
±20%
(M)
6.3 to 100V
dc
I=0.03CV or 4µA, whichever is greater.
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
◆DIMENSIONS
[mm]
Terminal
Code : E
F
±
0.5
F
±
0.5
φd
Sleeve (PET : Black)
5
φD
φd
0.5
2.0
F
φD'
L'
6.3
0.5
2.5
10 12.5
8
0.6 0.6 0.6
3.5 5.0 5.0
φD+0.5max.
L+1.5max.
16
0.8
7.5
18
0.8
7.5
φD'
Vent
(except
φ5)
L'
15min.
4min.
(φ5 to
φ10)
(φ12.5 to
φ18)
Gas escape end seal
◆PART
NUMBERING SYSTEM
E S MG
A A A
E
A A A A A
M
A A A N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 1.0µF:1R0,10µF:100,100µF:101)
Lead forming·taping code
Terminal code
Voltage code (ex. 6.3V:6R3,100V:101,315V:3B1)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (radial lead type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
5-15
CAT. No. E1001R
