 浏览型号RBV3510的Datasheet PDF文件第2页

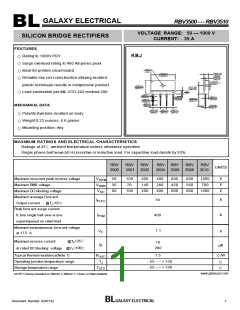

BL
FEATURES
GALAXY ELECTRICAL
RBV3500 - - - RBV3510
VOLTAGE RANGE: 50 --- 1000 V
CURRENT:
35
A
SILICON BRIDGE RECTIFIERS
Rating to 1000V PRV
Surge overload rating to
400
Am peres peak
Ideal for printed circuit board
Reliable low cos t cons truction utilizing m olded
plas tic technique res ults in inexpens ive product
Lead s olderable per MIL-STD-202 m ethod 208
KBJ
MECHANCAL DATA
Polarity:Sym bols m olded on body
Weight:0.23 ounces , 6.6 gram s
Mounting pos ition: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
am bient tem perature unles s otherwis e s pecified.
Single phas e,half wave,60 Hz,res is tive or inductive load. For capacitive load,derate by 20%.
RBV
3500
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average f orw ard
Output current
@T
C
=55
RBV
3501
100
70
100
RBV
3502
200
140
200
RBV
3504
400
280
400
35
RBV
3506
600
420
600
RBV
3508
800
560
800
RBV
3510
1000
700
1000
UNITS
V
V
V
A
V
RR M
V
RMS
V
DC
I
F(AV)
50
35
50
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load
Maximum instantaneous f orw ard voltage
at 17.5 A
Maximum reverse current
at rated DC blocking voltage
@T
A
=25
@T
A
=100
I
FSM
400
A
V
F
I
R
R
θJC
T
J
T
STG
1.1
10
200
1.5
- 55 ---- + 150
- 55 ---- + 150
V
μA
/W
Typical thermal resistance(Note
1)
Operating junction temperature range
Storage temperature range
NOTE:1.Device mounted on 300mm X 300mm X 1.6mm cu Plate heatsink.
www.galaxycn.com
Document Number 0287132
BL
GALAXY ELECTRICAL
1.
