Ultra Low Noise, Ultra Compact, Isolated type DC-DC Converter
b
6Watt BLC05 Series

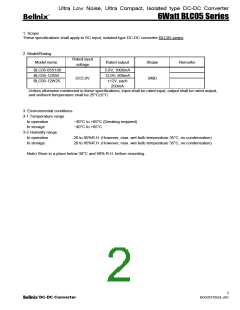

1. Scope
These specifications shall apply to DC input, isolated type DC-DC converter BLC05 series.
2. Model/Rating
Rated input
Model name
Rated output
Shape
SMD
Remarks
voltage
BLC05-05S100
BLC05-12S50
BLC05-12W25
5.0V, 1000mA
12.0V, 500mA
±12V, each
250mA
DC5.0V
Unless otherwise mentioned in these specifications, input shall be rated input, output shall be rated output,
and ambient temperature shall be 25°C±5°C.
3. Environmental conditions
3-1 Temperature range
In operation
In storage
−40°C to +85°C (Derating required)
−40°C to +85°C
3-2 Humidity range
In operation
In storage
20 to 95%R.H. (However, max. wet bulb temperature 35°C, no condensation)
20 to 95%R.H. (However, max. wet bulb temperature 35°C, no condensation)
Note) Store in a place below 30°C and 60% R.H. before mounting.
2
DC-DC Converter
BDD20170524_A01
