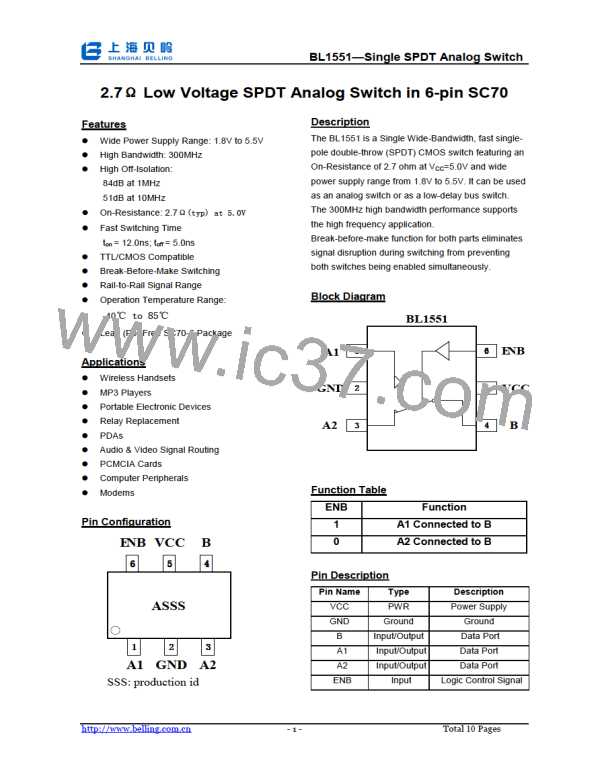

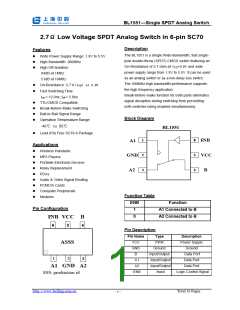

ꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀBL1551—Single SPDT Analog Switch
2.7ΩLow Voltage SPDT Analog Switch in 6-pin SC70
Description
Features
TheꢀBL1551ꢀisꢀaꢀSingleꢀWideꢁBandwidth,ꢀfastꢀsingleꢁ
poleꢀdoubleꢁthrowꢀ(SPDT)ꢀCMOSꢀswitchꢀfeaturingꢀanꢀ
OnꢁResistanceꢀofꢀ2.7ꢀohmꢀatꢀVCC=5.0Vꢀandꢀwideꢀ
powerꢀsupplyꢀrangeꢀfromꢀ1.8Vꢀtoꢀ5.5V.ꢀItꢀcanꢀbeꢀusedꢀ
asꢀanꢀanalogꢀswitchꢀorꢀasꢀaꢀlowꢁdelayꢀbusꢀswitch.ꢀ
Theꢀ300MHzꢀhighꢀbandwidthꢀperformanceꢀsupportsꢀ
theꢀhighꢀfrequencyꢀapplication.ꢀꢀ
ꢀ WideꢀPowerꢀSupplyꢀRange:ꢀ1.8Vꢀtoꢀ5.5Vꢀ
ꢀ HighꢀBandwidth:ꢀ300MHzꢀ
ꢀ HighꢀOffꢁIsolation:ꢀꢀ
84dBꢀatꢀ1MHzꢀ
51dBꢀatꢀ10MHzꢀ
ꢀ OnꢁResistance:ꢀ2.7Ω(typ) at 5.0Vꢀ
ꢀ FastꢀSwitchingꢀTimeꢀ
Breakꢁbeforeꢁmakeꢀfunctionꢀforꢀbothꢀpartsꢀeliminatesꢀ
signalꢀdisruptionꢀduringꢀswitchingꢀfromꢀpreventingꢀ
bothꢀswitchesꢀbeingꢀenabledꢀsimultaneously.ꢀ
t
onꢀ=ꢀ12.0ns;ꢀtoffꢀ=ꢀ5.0nsꢀ
ꢀ TTL/CMOSꢀCompatibleꢀ
ꢀ BreakꢁBeforeꢁMakeꢀSwitchingꢀ
ꢀ RailꢁtoꢁRailꢀSignalꢀRangeꢀ
ꢀ OperationꢀTemperatureꢀRange:ꢀꢀ
Block Diagram
ꢁ40℃ to 85℃
BL1551
ꢀ Leadꢀ(Pb)ꢀFreeꢀSC70ꢁ6ꢀPackageꢀ
1
2
3
6
5
4
ENB
VCC
B
A1
GND
A2
Applications
ꢀ WirelessꢀHandsetsꢀ
ꢀ MP3ꢀPlayersꢀ
ꢀ PortableꢀElectronicꢀDevicesꢀ
ꢀ RelayꢀReplacementꢀ
ꢀ PDAsꢀꢀ
ꢀ Audioꢀ&ꢀVideoꢀSignalꢀRoutingꢀ
ꢀ PCMCIAꢀCardsꢀ
ꢀ ComputerꢀPeripheralsꢀ
ꢀ Modemsꢀ
Function Table
ENB
Function
Pin Configuration
1
0
A1 Connected to B
A2 Connected to B
ENB VCC B
6
5
4
Pin Description
Pin Name
Type
Description
PowerꢀSupplyꢀ
Groundꢀ
VCCꢀ
PWRꢀ
ASSS
GNDꢀ
Bꢀ
Groundꢀ
Input/Outputꢀ
Input/Outputꢀ
Input/Outputꢀ
Inputꢀ
ꢀDataꢀPortꢀ
1
2
3
A1ꢀ
DataꢀPortꢀ
A2ꢀ
DataꢀPortꢀ
A1 GND A2
SSS:ꢀproductionꢀidꢀ
ENBꢀ
LogicꢀControlꢀSignalꢀ
http://www.belling.com.cn
- 1 -
Total 10ꢀPages
