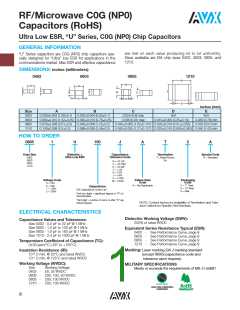

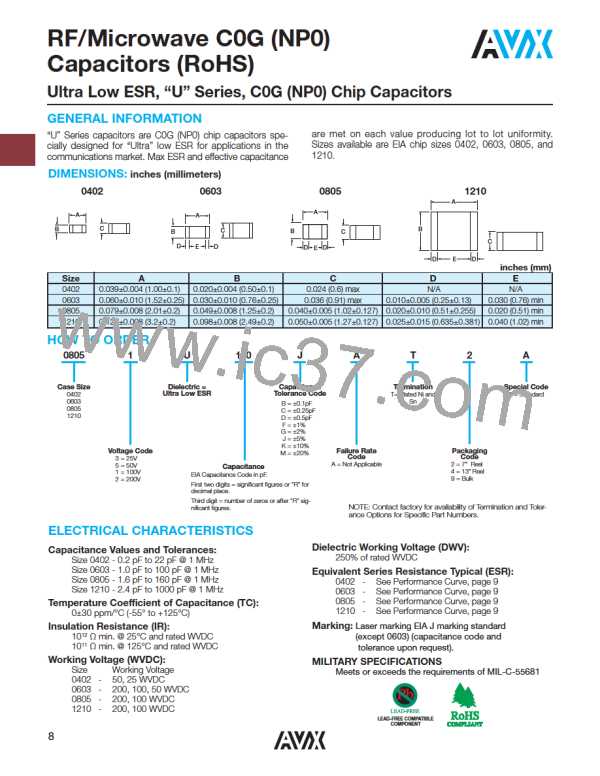

RF/Microwave C0G (NP0)
Capacitors (RoHS)
Ultra Low ESR, “U” Series, C0G (NP0) Chip Capacitors
GENERAL INFORMATION
“U” Series capacitors are C0G (NP0) chip capacitors spe-
cially designed for “Ultra” low ESR for applications in the
communications market. Max ESR and effective capacitance
are met on each value producing lot to lot uniformity.
Sizes available are EIA chip sizes 0402, 0603, 0805, and
1210.
DIMENSIONS:
inches (millimeters)
0402
A
B
C
B
D
E
D
A
C
B
D
E D
D
E
D
0603
A
0805
A
1210
C
B
C
Size
0402
0603
0805
1210
A
0.039±0.004 (1.00±0.1)
0.060±0.010 (1.52±0.25)
0.079±0.008 (2.01±0.2)
0.126±0.008 (3.2±0.2)
B
0.020±0.004 (0.50±0.1)
0.030±0.010 (0.76±0.25)
0.049±0.008 (1.25±0.2)
0.098±0.008 (2.49±0.2)
C
0.024 (0.6) max
0.036 (0.91) max
0.040±0.005 (1.02±0.127)
0.050±0.005 (1.27±0.127)
D
N/A
0.010±0.005 (0.25±0.13)
0.020±0.010 (0.51±0.255)
0.025±0.015 (0.635±0.381)
inches (mm)
E
N/A
0.030 (0.76) min
0.020 (0.51) min
0.040 (1.02) min
HOW TO ORDER
0805
1
U
100
J
A
T
2
A
Case Size
0402
0603
0805
1210
Dielectric =
Ultra Low ESR
Capacitance
Tolerance Code
B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
Termination
T= Plated Ni and
Sn
Special Code
A = Standard
Voltage Code
3 = 25V
5 = 50V
1 = 100V
2 = 200V
Failure Rate
Code
A = Not Applicable
Packaging
Code
2 = 7" Reel
4 = 13" Reel
9 = Bulk
Capacitance
EIA Capacitance Code in pF.
First two digits = significant figures or “R” for
decimal place.
Third digit = number of zeros or after “R” sig-
nificant figures.
NOTE: Contact factory for availability of Termination and Toler-
ance Options for Specific Part Numbers.
ELECTRICAL CHARACTERISTICS
Capacitance Values and Tolerances:
Size 0402 - 0.2 pF to 22 pF @ 1 MHz
Size 0603 - 1.0 pF to 100 pF @ 1 MHz
Size 0805 - 1.6 pF to 160 pF @ 1 MHz
Size 1210 - 2.4 pF to 1000 pF @ 1 MHz
Dielectric Working Voltage (DWV):
250% of rated WVDC

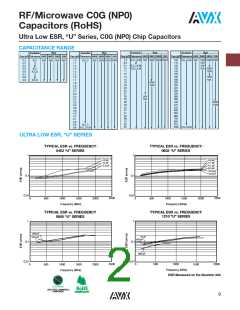

Equivalent Series Resistance Typical (ESR):
0402
0603
0805
1210
-
-
-
-
See Performance Curve, page 9
See Performance Curve, page 9
See Performance Curve, page 9
See Performance Curve, page 9
Temperature Coefficient of Capacitance (TC):
0±30 ppm/°C (-55° to +125°C)
Insulation Resistance (IR):
10 Ω min. @ 25°C and rated WVDC
10
11
Ω min. @ 125°C and rated WVDC
12
Marking:
Laser marking EIA J marking standard
(except 0603) (capacitance code and
tolerance upon request).
Working Voltage (WVDC):
Size
0402
0603
0805
1210
-
-
-
-
Working Voltage
50, 25 WVDC
200, 100, 50 WVDC
200, 100 WVDC
200, 100 WVDC
MILITARY SPECIFICATIONS
Meets or exceeds the requirements of MIL-C-55681
LEAD-FREE COMPATIBLE
COMPONENT
8
