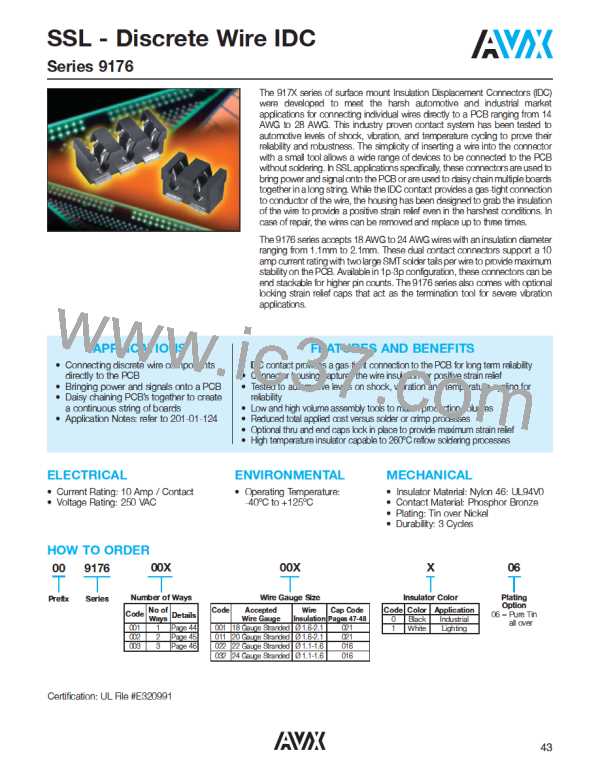

SSL - Discrete Wire IDC
Series 9176
The 917X series of surface mount Insulation Displacement Connectors (IDC)
were developed to meet the harsh automotive and industrial market
applications for connecting individual wires directly to a PCB ranging from 14
AWG to 28 AWG. This industry proven contact system has been tested to
automotive levels of shock, vibration, and temperature cycling to prove their
reliability and robustness. The simplicity of inserting a wire into the connector
with a small tool allows a wide range of devices to be connected to the PCB
without soldering. In SSL applications specifically, these connectors are used to
bring power and signal onto the PCB or are used to daisy chain multiple boards
together in a long string. While the IDC contact provides a gas-tight connection
to conductor of the wire, the housing has been designed to grab the insulation
of the wire to provide a positive strain relief even in the harshest conditions. In
case of repair, the wires can be removed and replace up to three times.
The 9176 series accepts 18 AWG to 24 AWG wires with an insulation diameter
ranging from 1.1mm to 2.1mm. These dual contact connectors support a 10
amp current rating with two large SMT solder tails per wire to provide maximum
stability on the PCB. Available in 1p-3p configuration, these connectors can be
end stackable for higher pin counts. The 9176 series also comes with optional
locking strain relief caps that act as the termination tool for severe vibration
applications.
APPLICATIONS
FEATURES AND BENEFITS
• Connecting discrete wire components
directly to the PCB
• Bringing power and signals onto a PCB
• Daisy chaining PCBs together to create
a continuous string of boards
• IDC contact provides a gas-tight connection to the PCB for long term reliability
Connector housing captures the wire insulation for positive strain relief
Tested to automotive levels on shock, vibration and temperature cycling for
reliability

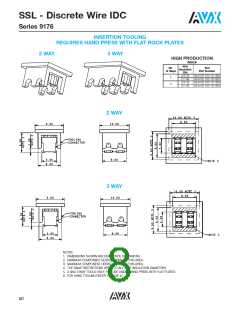

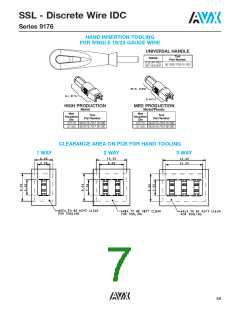

Low and high volume assembly tools to match production volumes
Reduced total applied cost versus solder or crimp processes
Optional thru and end caps lock in place to provide maximum strain relief
High temperature insulator capable to 260ºC reflow soldering processes
• Application Notes: refer to 201-01-124
ELECTRICAL
ENVIRONMENTAL
MECHANICAL
• Current Rating: 10 Amp / Contact
• Voltage Rating: 250 VAC
• Operating Temperature:
-40ºC to +125ºC
• Insulator Material: Nylon 46: UL94V0
• Contact Material: Phosphor Bronze
• Plating: Tin over Nickel
• Durability: 3 Cycles
HOW TO ORDER
00X
00X
X
06
00
9176
Number of Ways
No of
Wire Gauge Size
Insulator Color
Plating
Option
06 = Pure Tin
all over
Prefix
Series
Code Color Application
Code
Accepted
Wire Gauge
Wire
Cap Code
Code
Details
Ways

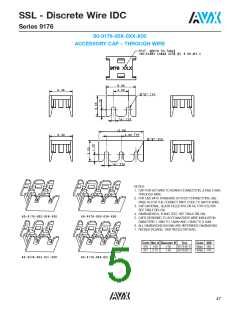

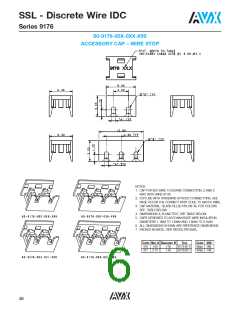

Insulation Pages 47-48
0
1
Black
White
Industrial
Lighting
001
002
003
1
2
3

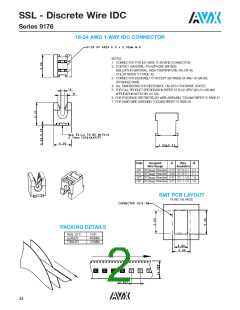

Page 44

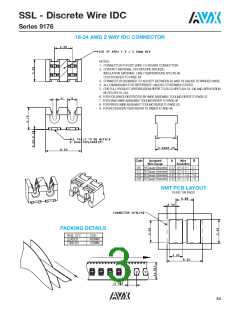

Page 45
Page 46
001 18 Gauge Stranded Ø 1.6-2.1
011 20 Gauge Stranded Ø 1.6-2.1
022 22 Gauge Stranded Ø 1.1-1.6
032 24 Gauge Stranded Ø 1.1-1.6
021
021
016
016
Certification: UL File #E320991
