ATmega8(L)
Assembly Code Example for a Boot Loader” on page 216 for an assembly code
example.
Performing Page Erase by
SPM
To execute page erase, set up the address in the Z-pointer, write “X0000011” to
SPMCR and execute SPM within four clock cycles after writing SPMCR. The data in R1
and R0 is ignored. The page address must be written to PCPAGE in the Z-register.
Other bits in the Z-pointer will be ignored during this operation.
•
Page Erase to the RWW section: The NRWW section can be read during the page
erase.
•
Page Erase to the NRWW section: The CPU is halted during the operation.
Filling the Temporary Buffer
(Page Loading)
To write an instruction word, set up the address in the Z-pointer and data in R1:R0, write
“00000001” to SPMCR and execute SPM within four clock cycles after writing SPMCR.
The content of PCWORD in the Z-register is used to address the data in the temporary
buffer. The temporary buffer will auto-erase after a page write operation or by writing the
RWWSRE bit in SPMCR. It is also erased after a System Reset. Note that it is not pos-
sible to write more than one time to each address without erasing the temporary buffer.
Note:
If the EEPROM is written in the middle of an SPM page Load operation, all data loaded
will be lost.
Performing a Page Write
To execute page write, set up the address in the Z-pointer, write “X0000101” to SPMCR
and execute SPM within four clock cycles after writing SPMCR. The data in R1 and R0
is ignored. The page address must be written to PCPAGE. Other bits in the Z-pointer
must be written to zero during this operation.
•
Page Write to the RWW section: The NRWW section can be read during the page
write.
•
Page Write to the NRWW section: The CPU is halted during the operation.
Using the SPM Interrupt
If the SPM interrupt is enabled, the SPM interrupt will generate a constant interrupt
when the SPMEN bit in SPMCR is cleared. This means that the interrupt can be used
instead of polling the SPMCR Register in software. When using the SPM interrupt, the
Interrupt Vectors should be moved to the BLS section to avoid that an interrupt is
accessing the RWW section when it is blocked for reading. How to move the interrupts
is described in “Interrupts” on page 44.
Consideration While Updating Special care must be taken if the user allows the Boot Loader section to be updated by
BLS
leaving Boot Lock bit11 unprogrammed. An accidental write to the Boot Loader itself can
corrupt the entire Boot Loader, and further software updates might be impossible. If it is
not necessary to change the Boot Loader software itself, it is recommended to program
the Boot Lock bit11 to protect the Boot Loader software from any internal software
changes.
Prevent Reading the RWW
Section During Self-
Programming
During Self-Programming (either page erase or page write), the RWW section is always
blocked for reading. The user software itself must prevent that this section is addressed
during the self programming operation. The RWWSB in the SPMCR will be set as long
as the RWW section is busy. During Self-Programming the Interrupt Vector table should
be moved to the BLS as described in “Interrupts” on page 44, or the interrupts must be
disabled. Before addressing the RWW section after the programming is completed, the

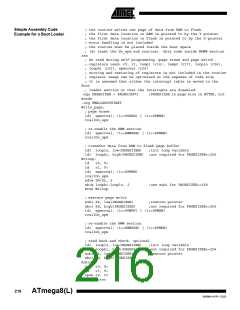

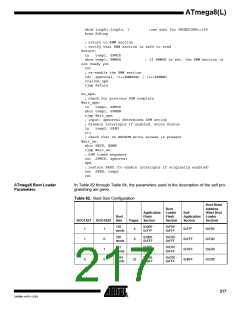

user software must clear the RWWSB by writing the RWWSRE. See “Simple Assembly
Code Example for a Boot Loader” on page 216 for an example.
213
2486M–AVR–12/03
