ATMEGA2560-16AU-SL383 参数 Datasheet PDF下载

ATMEGA2560-16AU-SL383图片预览
型号: ATMEGA2560-16AU-SL383
PDF下载: 下载PDF文件 查看货源
内容描述: [Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 16MHz, CMOS, PQFP100, 14 X 14 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, MS-026AED, TQFP-100]
分类和应用: 时钟微控制器
文件页数/大小: 448 页 / 7518 K
品牌: ATMEL [ ATMEL ]

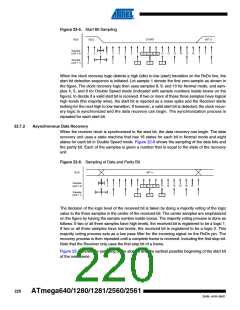

 浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第220页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第221页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第222页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第223页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第225页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第226页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第227页浏览型号ATMEGA2560-16AU-SL383的Datasheet PDF文件第228页
ister (TXB) will be the destination for data written to the UDRn Register location. Reading the
UDRn Register location will return the contents of the Receive Data Buffer Register (RXB).
For 5-, 6-, or 7-bit characters the upper unused bits will be ignored by the Transmitter and set to
zero by the Receiver.
The transmit buffer can only be written when the UDREn Flag in the UCSRnA Register is set.
Data written to UDRn when the UDREn Flag is not set, will be ignored by the USART Transmit-
ter. When data is written to the transmit buffer, and the Transmitter is enabled, the Transmitter
will load the data into the Transmit Shift Register when the Shift Register is empty. Then the
data will be serially transmitted on the TxDn pin.
The receive buffer consists of a two level FIFO. The FIFO will change its state whenever the
receive buffer is accessed. Due to this behavior of the receive buffer, do not use Read-Modify-
Write instructions (SBI and CBI) on this location. Be careful when using bit test instructions
(SBIC and SBIS), since these also will change the state of the FIFO.
22.9.2
UCSRnA – USART Control and Status Register A
Bit
7
6
5
4
FEn
R
3
DORn
R
2
UPEn
R
1
U2Xn
R/W
0
0
MPCMn
R/W
0
RXCn
TXCn
UDREn
UCSRnA
Read/Write
R
0
R/W
R
1
Initial Value
0
0
0
0
• Bit 7 – RXCn: USART Receive Complete
This flag bit is set when there are unread data in the receive buffer and cleared when the receive
buffer is empty (i.e., does not contain any unread data). If the Receiver is disabled, the receive
buffer will be flushed and consequently the RXCn bit will become zero. The RXCn Flag can be
used to generate a Receive Complete interrupt (see description of the RXCIEn bit).
• Bit 6 – TXCn: USART Transmit Complete
This flag bit is set when the entire frame in the Transmit Shift Register has been shifted out and
there are no new data currently present in the transmit buffer (UDRn). The TXCn Flag bit is auto-
matically cleared when a transmit complete interrupt is executed, or it can be cleared by writing
a one to its bit location. The TXCn Flag can generate a Transmit Complete interrupt (see
description of the TXCIEn bit).
• Bit 5 – UDREn: USART Data Register Empty
The UDREn Flag indicates if the transmit buffer (UDRn) is ready to receive new data. If UDREn
is one, the buffer is empty, and therefore ready to be written. The UDREn Flag can generate a
Data Register Empty interrupt (see description of the UDRIEn bit).
UDREn is set after a reset to indicate that the Transmitter is ready.
• Bit 4 – FEn: Frame Error
This bit is set if the next character in the receive buffer had a Frame Error when received. I.e.,
when the first stop bit of the next character in the receive buffer is zero. This bit is valid until the
receive buffer (UDRn) is read. The FEn bit is zero when the stop bit of received data is one.
Always set this bit to zero when writing to UCSRnA.
• Bit 3 – DORn: Data OverRun
This bit is set if a Data OverRun condition is detected. A Data OverRun occurs when the receive
buffer is full (two characters), it is a new character waiting in the Receive Shift Register, and a
224
ATmega640/1280/1281/2560/2561
2549L–AVR–08/07
