AT45DB011B

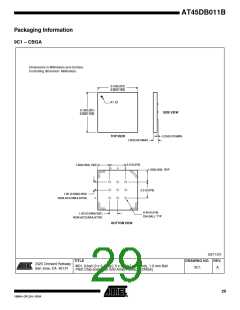

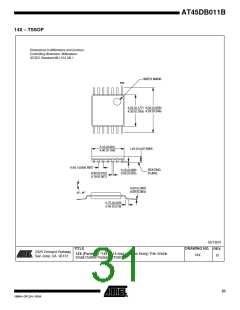

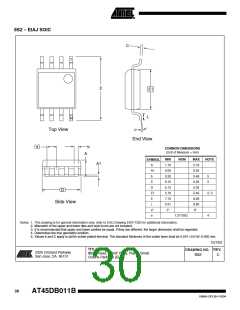

Packaging Information
9C1 – CBGA
Dimensions in Millimeters and (Inches).
Controlling dimension: Millimeters.
5.10(0.201)
4.90(0.193)
A1 ID
5.10(0.201)
4.90(0.193)
SIDE VIEW
0.25(0.010)MIN
TOP VIEW
1.20(0.047)MAX
2.0 (0.079)
1.50(0.059) REF
3
2
1
1.50(0.059) REF
A
B
2.0 (0.079)
1.00 (0.0394) BSC
NON-ACCUMULATIVE
C
0.40 (0.016)
1.00 (0.0394) BSC
DIA BALL TYP
NON-ACCUMULATIVE
BOTTOM VIEW
04/11/01
TITLE
DRAWING NO. REV.
2325 Orchard Parkway
San Jose, CA 95131
9C1, 9-ball (3 x 3 Array), 5 x 5 x 1.2 mm Body, 1.0 mm Ball
Pitch Chip-scale Ball Grid Array Package (CBGA)
9C1
A
R
