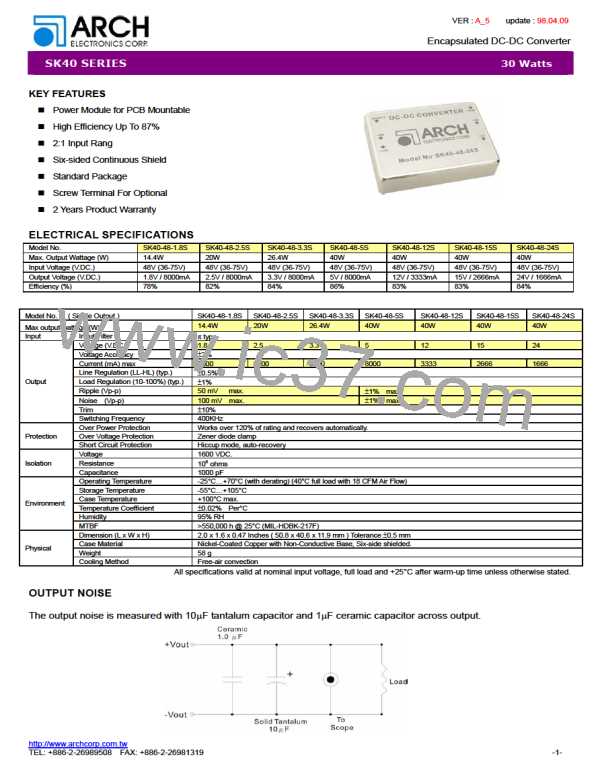

Encapsulated DC-DC Converter
SK40 SERIES
30 Watts
KEY FEATURES
„
„
„
„
„
„
„
Power Module for PCB Mountable
High Efficiency Up To 87%
2:1 Input Rang
Six-sided Continuous Shield
Standard Package
Screw Terminal For Optional
2 Years Product Warranty
ELECTRICAL SPECIFICATIONS
Model No.
SK40-48-1.8S
SK40-48-2.5S
20W
SK40-48-3.3S
26.4W
SK40-48-5S
40W
SK40-48-12S
40W
SK40-48-15S
40W
SK40-48-24S
40W
Max. Output Wattage (W)
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency (%)
14.4W
48V (36-75V)
1.8V / 8000mA
78%
48V (36-75V)
2.5V / 8000mA
82%
48V (36-75V)
3.3V / 8000mA
84%
48V (36-75V)
5V / 8000mA
86%
48V (36-75V)
12V / 3333mA
83%
48V (36-75V)
15V / 2666mA
83%
48V (36-75V)
24V / 1666mA
84%
Model No.
( Single Output )
SK40-48-1.8S
14.4W
SK40-48-2.5S
SK40-48-3.3S
SK40-48-5S
SK40-48-12S
SK40-48-15S
SK40-48-24S
20W
26.4W
40W
40W
40W
40W
Max output wattage (W)
Input
Input Filter
π type
Voltage (V.DC.)
Voltage Accuracy
Current (mA) max
1.8
2.5
3.3
5
12
15
24
±2%
8000
8000
8000
8000
3333
2666
1666
Line Regulation (LL-HL) (typ.)
Load Regulation (10-100%) (typ.)
Ripple (Vp-p)
±0.5%
±1%
50 mV max.
100 mV max.
±10%
Output
±1% max.
±1% max.
Noise (Vp-p)
Trim
Switching Frequency
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Voltage
400KHz
Works over 120% of rating and recovers automatically.
Zener diode clamp
Hiccup mode, auto-recovery
Protection
Isolation
1600 VDC.
108 ohms
Resistance
Capacitance
1000 pF
Operating Temperature
Storage Temperature
Case Temperature
Temperature Coefficient
Humidity
-25°C…+70°C (with derating) (40°C full load with 18 CFM Air Flow)
-55°C…+105°C
+100°C max.
Environment
Physical
±0.02% Per°C
95% RH
MTBF
>550,000 h @ 25°C (MIL-HDBK-217F)
2.0 x 1.6 x 0.47 Inches ( 50.8 x 40.6 x 11.9 mm ) Tolerance ±0.5 mm
Nickel-Coated Copper with Non-Conductive Base, Six-side shielded.
58 g
Dimension (L x W x H)
Case Material
Weight
Cooling Method
Free-air convection
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
OUTPUT NOISE
The output noise is measured with 10μF tantalum capacitor and 1μF ceramic capacitor across output.
