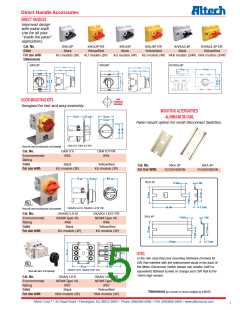

Direct Handle Accessories
DIRECT HANDLES
Im proved design
with m etal shaft.
Use for all your
“inside the panel”
applications.
Cat. No.
Color
K/KU3P
Black
K/KU3P Y/R
Yellow/Red
K/KU4P
Black
K/KU4P Y/R
Yellow/Red
K/VKA3-4P
Black
K/VKA3-4P Y/R
Yellow/Red
For use with
Dimensions
KU m odels (3P)
KU m odels (3P)
KU m odels (4P)
KU m odels (4P) VKA m odels (3/4P) VKA m odels (3/4P)
K/KU3P
K/KU4P
K/VKA3-4P
79 mm
79 mm
43 mm
105 mm
45 mm
34 mm
54 mm
70 mm
45 mm
34 mm
Drill
Tem plate
Included
DOOR MOUNTING KITS
Designed for fast and easy assem bly.
MOUNTING ALTERNATIVES
- ALUMINUM DIN RAIL
72 mm
32 mm
70 mm
62 mm
Panel m ount option for sm all Disconnect Switches.
OKA 0.V, OKA 0.VY/R
Shown with switch and display plate. (sold separately)
Cat. No.
Environm ental
Rating
OKA 0.V
OKA 0.VY/R
IP65
IP65
Color
For use with
Black
Yellow/Red
Cat. No.
For Use With
RKA 3P
RKA 4P
KU m odels (3P)
KU m odels (3P)
KU325/40/63N
KU425/40/63N
72 mm
38 mm
Ø79 mm
RKA 3P
14 mm
1 mm
66 mm
7.5 mm
1 mm
OKA/KU LK10, OKA/KU LK10 Y/R
Shown with switch and display plate. (sold separately)
Cat. No.
Environm ental
OKA/KU LK10
OKA/KU LK10 Y/R
NEMAType 4X,
IP66
RKA 4P
14 mm
NEMAType 4X,
IP66
Rating
Color
Black
Yellow/Red
For use with
KU m odels (3P)
KU m odels (3P)
84 mm
7.5 mm
NOTE:
In the rare case that your mounting hardware (screws) for
DIN Rail interfere with the enforcement studs in the back of
the Motor Disconnect Switch please use smaller (≤M3 or
equivalent) flathead screws or change your DIN Rail to the
15mm high version.
82 mm
OKA/V LK11, OKA/V LK11 Y/R
87 mm
Shown with switch. (sold separately)
Cat. No.
Environm ental
OKA/V LK11
OKA/V LK11 Y/R
NEMAType 4X,
IP67
NEMAType 4X,
IP67
Rating
Color
For use with
Black
Yellow/Red
Dimensions (to convert to inches multiply by 0.03937)
VKA m odels (3P)
VKA m odels (3P)
