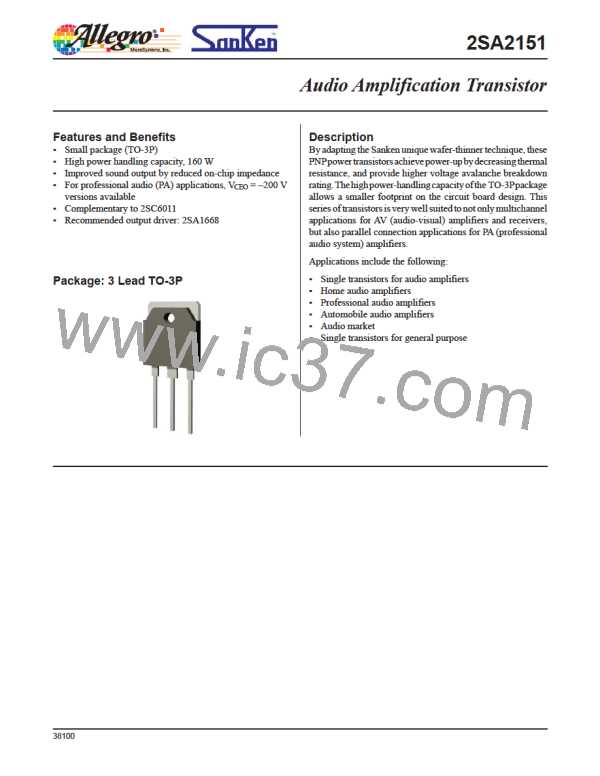

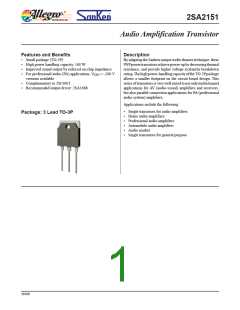

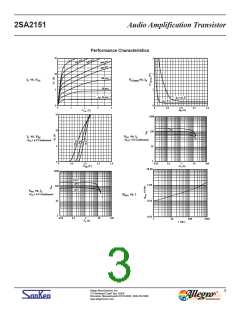

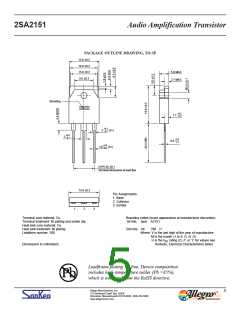

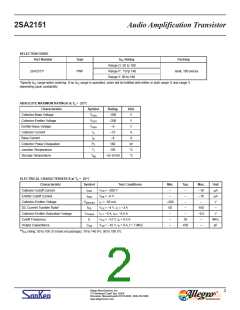

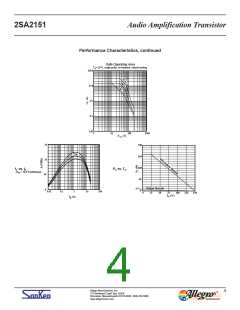

Audio Amplification Transistor
2SA2151

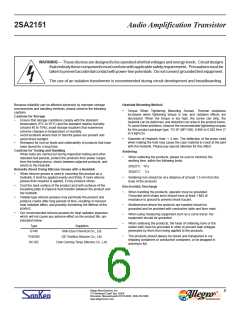

WARNING —These devices are designed to be operated at lethal voltages and energy levels. Circuit designs
thatembodythesecomponentsmustconformwithapplicablesafetyrequirements. Precautionsmustbe
takentopreventaccidentalcontactwithpower-linepotentials. Donotconnectgroundedtestequipment.
The use of an isolation transformer is recommended during circuit development and breadboarding.
Because reliability can be affected adversely by improper storage
Heatsink Mounting Method
environments and handling methods, please observe the following
cautions.
Cautions for Storage
•
Torque When Tightening Mounting Screws. Thermal resistance
increases when tightening torque is low, and radiation effects are
decreased. When the torque is too high, the screw can strip, the
heatsink can be deformed, and distortion can arise in the product frame.
To avoid these problems, observe the recommended tightening torques
for this product package type, TO-3P (MT-100): 0.686 to 0.882 N•m (7
to 9 kgf•cm).
•
Ensure that storage conditions comply with the standard
temperature (5°C to 35°C) and the standard relative humidity
(around 40 to 75%); avoid storage locations that experience
extreme changes in temperature or humidity.
•
•
Avoid locations where dust or harmful gases are present and
avoid direct sunlight.
Reinspect for rust on leads and solderability of products that have
been stored for a long time.
•
Diameter of Heatsink Hole: < 4 mm. The deflection of the press mold
when making the hole may cause the case material to crack at the joint
with the heatsink. Please pay special attention for this effect.
Cautions for Testing and Handling
Soldering
When tests are carried out during inspection testing and other
standard test periods, protect the products from power surges
from the testing device, shorts between adjacent products, and
shorts to the heatsink.
•
When soldering the products, please be sure to minimize the
working time, within the following limits:
260±5°C 10 s
Remarks About Using Silicone Grease with a Heatsink
350±5°C 3 s
•
•
•
When silicone grease is used in mounting this product on a
heatsink, it shall be applied evenly and thinly. If more silicone
grease than required is applied, it may produce stress.
•
Soldering iron should be at a distance of at least 1.5 mm from the
body of the products
Coat the back surface of the product and both surfaces of the
insulating plate to improve heat transfer between the product and
the heatsink.
Electrostatic Discharge
•
When handling the products, operator must be grounded.
Grounded wrist straps worn should have at least 1 MΩ of
resistance to ground to prevent shock hazard.
Volatile-type silicone greases may permeate the product and
produce cracks after long periods of time, resulting in reduced
heat radiation effect, and possibly shortening the lifetime of the
product.
•
•
•
Workbenches where the products are handled should be
grounded and be provided with conductive table and floor mats.
•
Our recommended silicone greases for heat radiation purposes,
which will not cause any adverse effect on the product life, are
indicated below:
When using measuring equipment such as a curve tracer, the
equipment should be grounded.
When soldering the products, the head of soldering irons or the
solder bath must be grounded in other to prevent leak voltages
generated by them from being applied to the products.
Type
G746
Suppliers
Shin-Etsu Chemical Co., Ltd.
GE Toshiba Silicone Co., Ltd.
Dow Corning Toray Silicone Co., Ltd.
•
The products should always be stored and transported in our
shipping containers or conductive containers, or be wrapped in
aluminum foil.
YG6260
SC102
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Box 15036
6
Worcester, Massachusetts 01615-0036 (508) 853-5000
www.allegromicro.com
