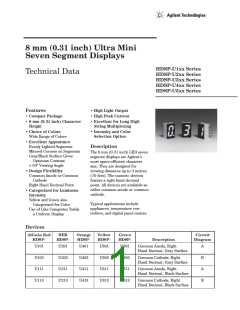

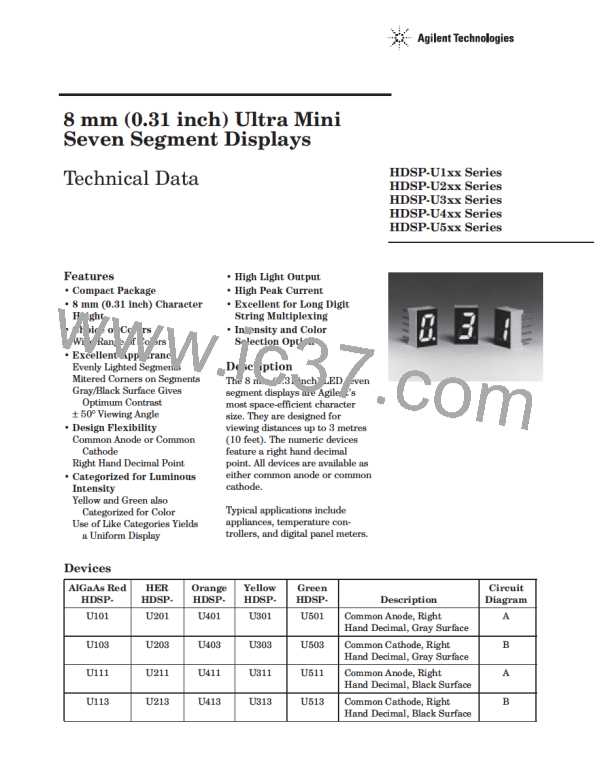

8 mm (0.31 inch) Ultra Mini
Seven Segment Displays
HDSP-U1xx Series
HDSP-U2xx Series
HDSP-U3xx Series
HDSP-U4xx Series
HDSP-U5xx Series
Technical Data
Features
• Compact Package
• High Light Output
• High Peak Current
• 8 mm (0.31 inch) Character
Height
• Excellent for Long Digit
String Multiplexing
• Choice of Colors
Wide Range of Colors
• Intensity and Color
Selection Option
• Excellent Appearance
Evenly Lighted Segments
Mitered Corners on Segments
Gray/Black Surface Gives
Optimum Contrast
Description
The 8 mm (0.31 inch) LED seven
segment displays are Agilent’s
most space-efficient character
size. They are designed for
viewing distances up to 3 metres
(10 feet). The numeric devices
feature a right hand decimal
point. All devices are available as
either common anode or common
cathode.
50° Viewing Angle
• Design Flexibility
Common Anode or Common
Cathode
Right Hand Decimal Point
• Categorized for Luminous
Intensity
Yellow and Green also
Categorized for Color
Use of Like Categories Yields
a Uniform Display
Typical applications include
appliances, temperature con-
trollers, and digital panel meters.
Devices
AlGaAs Red
HDSP-
HER
HDSP-
Orange
HDSP-
Yellow
HDSP-
Green
HDSP-

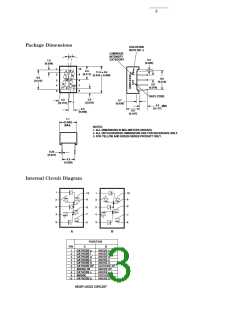

Circuit
Diagram
Description
U101
U103
U111
U113
U201
U203
U211
U213
U401
U403
U411
U413
U301
U303
U311
U313
U501
U503
U511
U513
Common Anode, Right
Hand Decimal, Gray Surface
A
Common Cathode, Right
Hand Decimal, Gray Surface
B
A
B
Common Anode, Right
Hand Decimal, Black Surface
Common Cathode, Right
Hand Decimal, Black Surface
