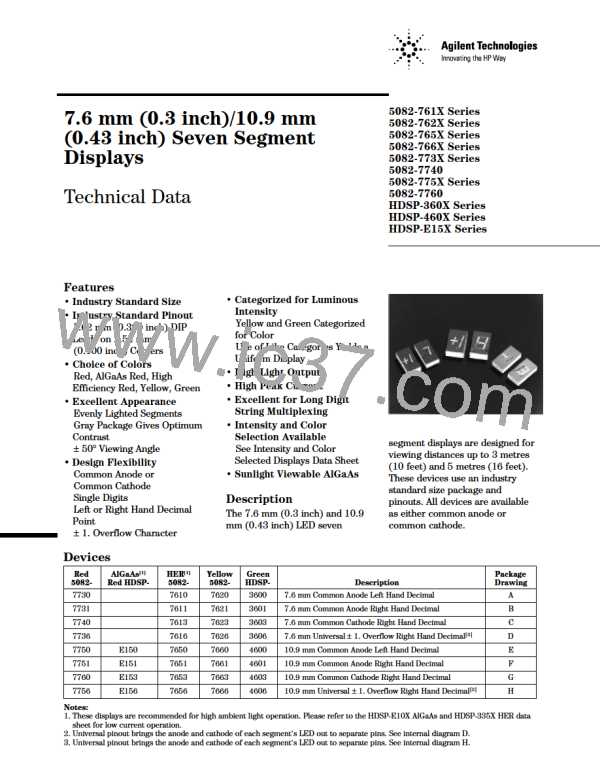

5082-761X Series
5082-762X Series
5082-765X Series
5082-766X Series
5082-773X Series
5082-7740
5082-775X Series
5082-7760
HDSP-360X Series
HDSP-460X Series
HDSP-E15X Series
7.6 mm (0.3 inch)/10.9 mm
(0.43 inch) Seven Segment
Displays
Technical Data
Features
• Industry Standard Size
• Industry Standard Pinout
7.62 mm (0.300 inch) DIP
Leads on 2.54 mm
(0.100 inch) Centers
Choice of Colors
Red, AlGaAs Red, High
Efficiency Red, Yellow, Green
• Categorized for Luminous
Intensity
Yellow and Green Categorized
for Color
Use of Like Categories Yields a
Uniform Display
• High Light Output
• High Peak Current
• Excellent for Long Digit
String Multiplexing
• Intensity and Color
Selection Available
• Excellent Appearance
Evenly Lighted Segments
Gray Package Gives Optimum
Contrast
segment displays are designed for
viewing distances up to 3 metres
(10 feet) and 5 metres (16 feet).
These devices use an industry
standard size package and
pinouts. All devices are available
as either common anode or
common cathode.
± 50° Viewing Angle
See Intensity and Color
Selected Displays Data Sheet
• Sunlight Viewable AlGaAs
Design Flexibility
Common Anode or
Common Cathode
Single Digits
Left or Right Hand Decimal
Point
Description
The 7.6 mm (0.3 inch) and 10.9
mm (0.43 inch) LED seven
± 1. Overflow Character
Devices
Red
AlGaAs[1]
HER[1]
5082-
Yellow
5082-
Green
HDSP-

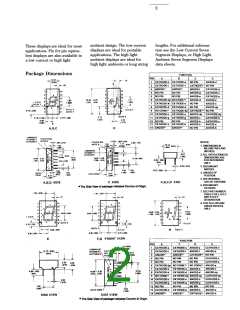

Package
Drawing
5082-
Red HDSP-
Description
7730
7731
7740
7736
7750
7751
7760
7756
7610
7611
7613
7616
7650
7651
7653
7656
7620
3600
3601
3603
3606
4600
4601
4603
4606
7.6 mm Common Anode Left Hand Decimal
A
7621
7623
7626
7660
7661
7663
7666
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Universal ± 1. Overflow Right Hand Decimal[2]
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal ± 1. Overflow Right Hand Decimal[2]
B
C
D
E
F
E150
E151
E153
E156
G
H
Notes:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-E10X AlGaAs and HDSP-335X HER data
sheet for low current operation.

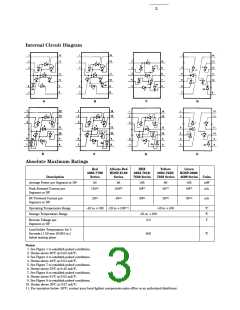

2. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram D.
3. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram H.
